Fotografia produsului are caracter informativ
TMMR250F+SKF
Date tehnice produs

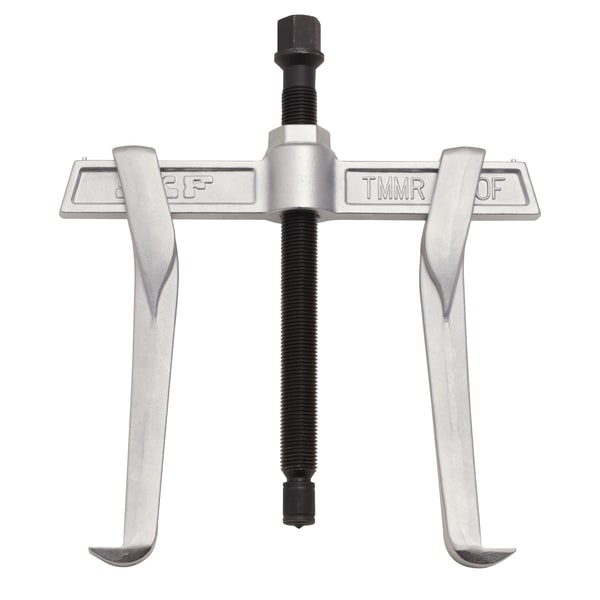

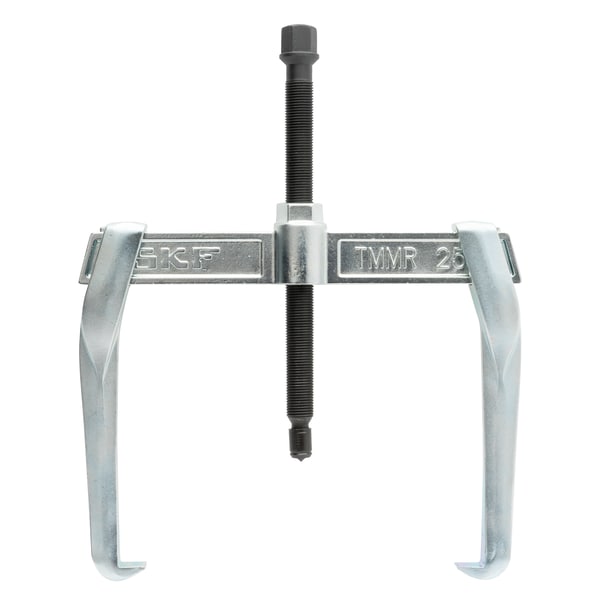

TMMR 250F - Reversible jaw puller
Reversible jaw puller The multi-purpose SKF Reversible Jaw Puller TMMR 250F is designed for internal and external pulling jobs of bearings and other components such as gears and pulleys. The two arms of the puller can be mounted cu the claws facing inside sau facing outside, making it a versatile and essential tool for mechanical workshops.
Greutate netă produs4.21 kgGreutate netă produs
Cod eClass23-05-19-01Cod eClass
Cod UNSPSC27111712Cod UNSPSC

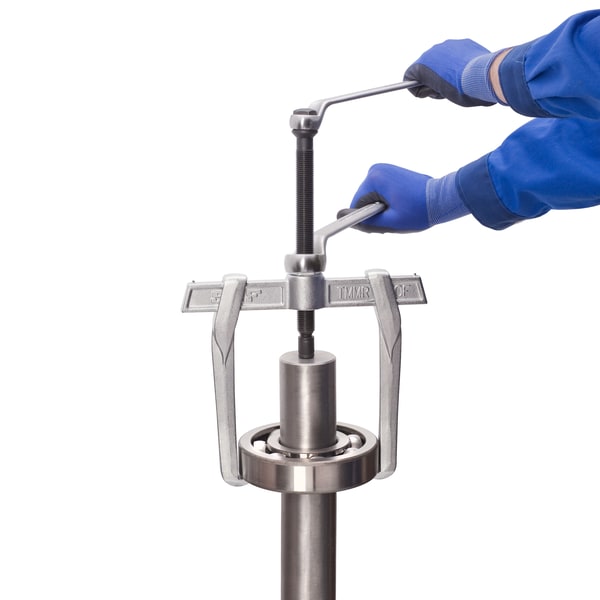

Recommended applicationsFor the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications cu an interference fit on the shaftRecommended applications
Suitable for workpiece dismounting from a Cilindric seating (straight shaft)DaSuitable for workpiece dismounting from a Cilindric seating (straight shaft)
Suitable for bearing dismounting from a Tapered seating (conical shaft)DaSuitable for bearing dismounting from a Tapered seating (conical shaft)
Prezentare produs
| Cod produs | TMMR 250F |
|---|---|
| Tip produs | Reversible jaw puller |
| Marcă | SKF |
Logistică
| Greutate netă produs | Greutate netă produs | 4.21 kg |
| Cod eClass | Cod eClass | 23-05-19-01 |
| Cod UNSPSC | Cod UNSPSC | 27111712 |
Proprietăți
| Recommended applications | Recommended applications | For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications cu an interference fit on the shaft |
| Suitable for workpiece dismounting from a Cilindric seating (straight shaft) | Suitable for workpiece dismounting from a Cilindric seating (straight shaft) | Da |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | Suitable for bearing dismounting from a Tapered seating (conical shaft) | Da |
| Suitable for bearing dismounting from a Sleeve (adapter sau withdrawal sleeve) | Suitable for bearing dismounting from a Sleeve (adapter sau withdrawal sleeve) | Da |
| Suitable for workpiece dismounting from a Blind arrangement (housing cu shaft) | Suitable for workpiece dismounting from a Blind arrangement (housing cu shaft) | Nu |
| Suitable for workpiece dismounting from a Carcasă | Suitable for workpiece dismounting from a Carcasă | Da, cu spindle support (not included) |
| Suitable for bearing type(s) | Suitable for bearing type(s) | All |
| Dismounting force generation | Dismounting force generation | Spindle |
| Special features | Special features | Reversible arms;Selflocking arms |
| Number of arms | Number of arms | 2 |
| Lățime of grip external | Lățime of grip external | [object Object] mm |
| Lățime of grip internal | Lățime of grip internal | [object Object] mm |
| Effective arm length | Effective arm length | 183 mm |
| Total Arm length | Total Arm length | 245 mm |
| Claw height | Claw height | 10 mm |
| Claw length | Claw length | 22 mm |
| Claw width | Claw width | 28 mm |
| Spindle torque (max) | Spindle torque (max) | 160 N·m |

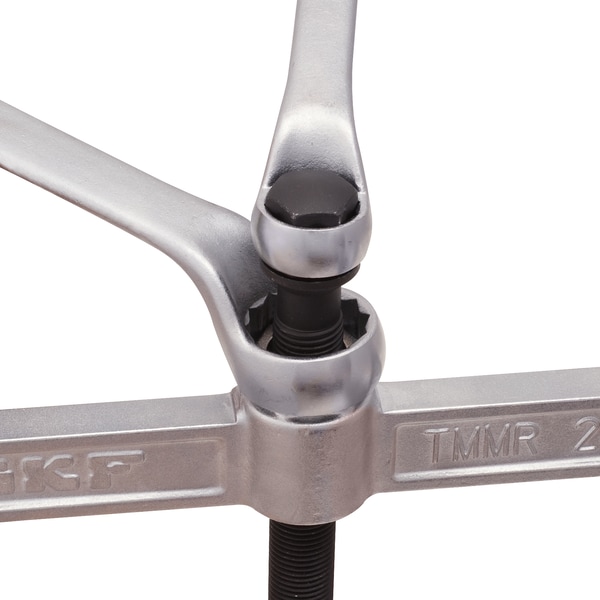

| Spindle head, hexagon size | Spindle head, hexagon size | 24 |
| Puller sau Adapter hexagon size | Puller sau Adapter hexagon size | 32 mm |

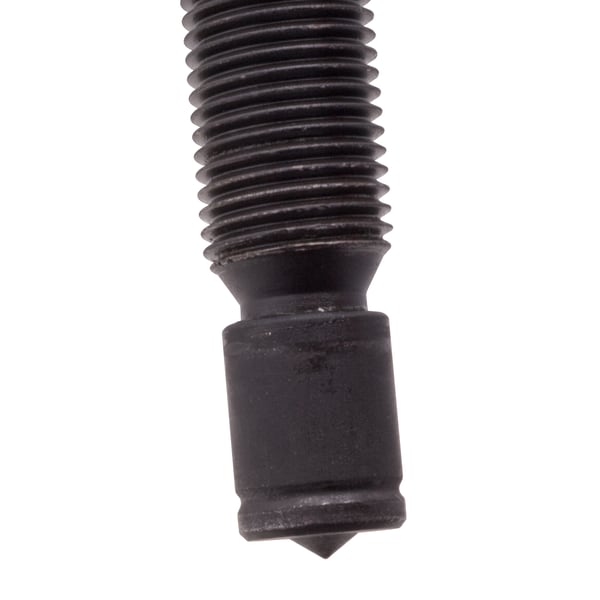

| Spindle nose piece | Spindle nose piece | Nu, optional |
| Material | Material | Alloy engineering steels, hardened and tempered |
| Acoperire | Acoperire | Zinc coated |
| Content | Content | 1x Puller TMMR 250F;1x Tube of spindle grease LGEV2/0.035;1x Printed instructions for use |
Dimensiuni detaliate
| Total spindle length | Total spindle length | 317 mm |
