23678+SKF
Date tehnice produs

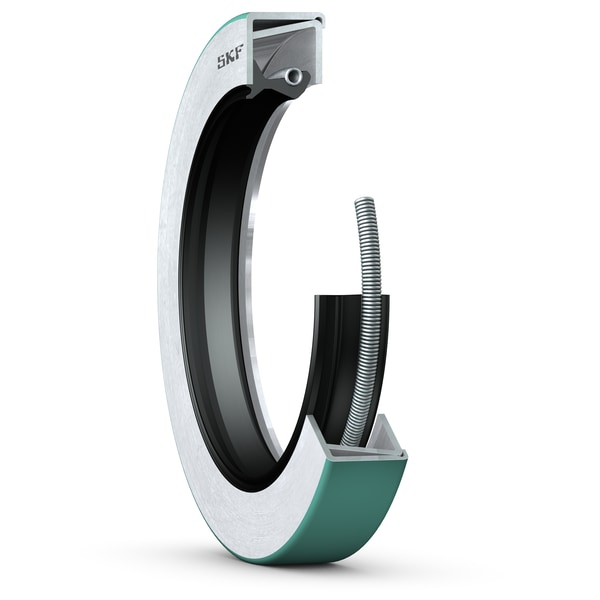

23678 - Radial shaft seal cu double metal case, SKF Wave lip and auxiliary, fără contacting lip, for oil sau grease
Radial shaft seal cu double metal case, SKF Wave lip and auxiliary, fără contacting lip, for oil sau grease Radial shaft etanșări are used between rotating and stationary machine components, sau between components in relative motion. CRWHA1 etanșări are designed cu a double metal case, an SKF WAVE lip made of elastomer cu a higher pumping rate to reduce heat generation, a garter spring to optimize sealing against the shaft, and a dust lip to improve contamination exclusion. Most of the etanșări feature the SKF Bore Tite coating on the diametru exterior care ajută la umplerea micilor imperfecțiuni din alezajul carcasei.
Diametru arbore60.33 mmDiametru arbore
Diametru alezaj carcasă82.58 mmDiametru alezaj carcasă
Seal width11.13 mmSeal width
Turație limită8640 r/minTurație limită
Maximum operating temperature200 °CMaximum operating temperature
Minimum operating temperature-25 °CMinimum operating temperature
Prezentare produs
| Cod produs | 23678 |
|---|---|
| Tip produs | Radial shaft seal cu double metal case, SKF Wave lip and auxiliary, fără contacting lip, for oil sau grease |
| Marcă | SKF |
Dimensiuni detaliate
| Diametru arbore | Diametru arbore | 60.33 mm |
| Diametru alezaj carcasă | Diametru alezaj carcasă | 82.58 mm |
| Seal width | Seal width | 11.13 mm |
Performanță
| Turație limită | Turație limită | 8640 r/min |
| Maximum operating temperature | Maximum operating temperature | 200 °C |
| Minimum operating temperature | Minimum operating temperature | -25 °C |
| Permissible circumferential speed | Permissible circumferential speed | 27.3 m/s |
| Rotational speed | Rotational speed | 8640 r/min |
Proprietăți
| Execuție | Execuție | CRWHA1 |
| Auxiliary lip | Auxiliary lip | Da |
| Etanșare lip material | Etanșare lip material | Fluoro rubber (FKM) |
| Type of diametru exterior | Type of diametru exterior | Metal-cased cu sealant coating on the diametru exterior |
| Unit system | Unit system | Inch |
Logistică
| Greutate netă produs | Greutate netă produs | 0.056 kg |
| Cod eClass | Cod eClass | 23-07-08-01 |
| Cod UNSPSC | Cod UNSPSC | 31181602 |
Dimensiuni detaliate
| d1 | Diametru arbore | 60.33 mm |
| D | Diametru alezaj carcasă | 82.58 mm |
| b | Seal width | 11.13 mm |
Aplicații și condiții de funcționare
| Operating temperature | Operating temperature | min. -25 °C °C |
| Operating temperature | Operating temperature | max. 200 °C °C |
| Circumferential speed | Circumferential speed | max. 27.3 m/s m/s |
| Rotational speed | Rotational speed | max. 8640 r/min |
| Pressure differential | Pressure differential | 0.07 N/mm² N/mm² |
Produse asociate
| SKF Speedi-Sleeve | SKF Speedi-Sleeve | 99241 |
