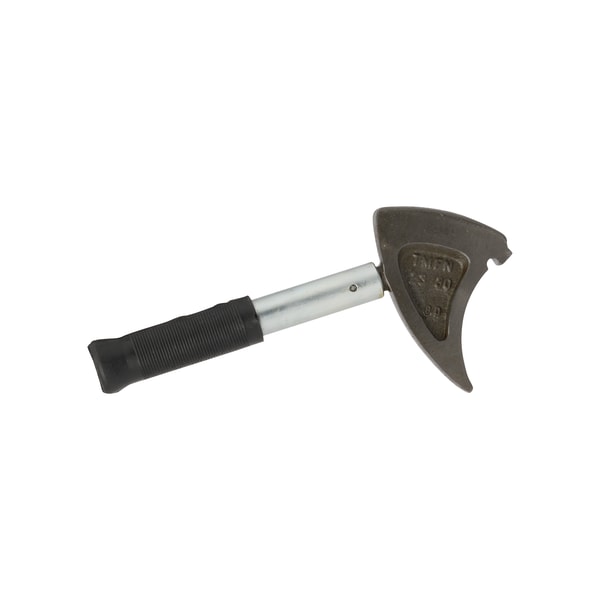

TMFN 23-30+SKF
Date tehnice produs
TMFN 23-30 - Impact Spanner

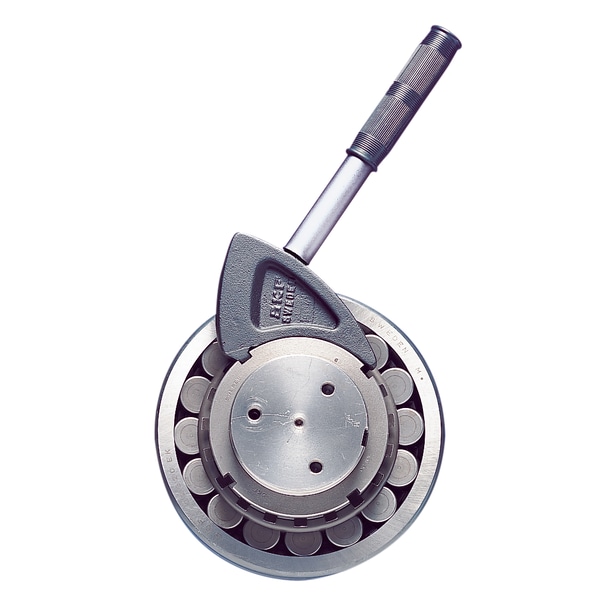

Impact Spanner The TMFN impact spanners are designed for safely tightening and loosening larger locknuts, especially after driving up a large bearing onto a tapered seating. Din fontă cu grafit sferoidal, au o suprafață specială de impact care permite transmiterea optimă a energiei de impact către piuliță.
Diametru exterior lock nut (range) (d₃)[object Object] mmDiametru exterior lock nut (range) (d₃)
Handle length (Lₕ)208 mmHandle length (Lₕ)
Nuse width (Nₖ)23 mmNuse width (Nₖ)
Nuse height (Nₕ)4.5 mmNuse height (Nₕ)
Nuse Length (f)11.5 mmNuse Length (f)
Grosime (n)23 mmGrosime (n)
Prezentare produs
| Cod produs | TMFN 23-30 |
|---|---|
| Tip produs | Impact Spanner |
| Marcă | SKF |
Dimensiuni detaliate
| Diametru exterior lock nut (range) (d₃) | Diametru exterior lock nut (range) (d₃) | [object Object] mm |
| Handle length (Lₕ) | Handle length (Lₕ) | 208 mm |
| Nuse width (Nₖ) | Nuse width (Nₖ) | 23 mm |
| Nuse height (Nₕ) | Nuse height (Nₕ) | 4.5 mm |
| Nuse Length (f) | Nuse Length (f) | 11.5 mm |
| Grosime (n) | Grosime (n) | 23 mm |
| Length (L) | Length (L) | 319 mm |
| Working length (l) | Working length (l) | 300 mm |
| Înălțime (H) | Înălțime (H) | 140 mm |
Proprietăți
| Recommended applications | Recommended applications | To safely tighten sau loosen lock nuts after driving up large bearings on tapered seatings when working cu rotating components in variety of applications cu medium to large bearings and lock nuts. |
| Series | Series | Impact spanner, TMFN |
| Type | Type | Model E |
| Allows bearing mounting | Allows bearing mounting | Nu |
| Fits on lock nuts inside SKF split pillow block housings (SNL) | Fits on lock nuts inside SKF split pillow block housings (SNL) | Nu |
| Piuliță de blocare size | Piuliță de blocare size | [object Object] |
| Suitable SKF Piuliță de blocare | Suitable SKF Piuliță de blocare | KM 23, KM 24, KM 25, KM 26, KM 27, KM 28, KM 29, KM 30, KM 31, KMFE 24, KMFE 26, KMFE 28, KML 26, KML 28, KML 30, KML 32, KMT 26, KMT 28, KMT 30, AN 22, AN 24, AN 26, AN 28, N 022, N 023, N 024, N 026, N 028, N 030, N 032 |
| Handle fixation | Handle fixation | Fixed cu rubber damper |
| Material | Material | Head: spheroidal fontă;Handle: carbon steel |
| Material handle | Material handle | Steel handle cu rubber grip |
| Acoperire | Acoperire | Black phosphated head cu galvanished handle |
| Colour | Colour | Black metallic, silver |
Logistică
| Greutate netă produs | Greutate netă produs | 1.38 kg |
| Cod eClass | Cod eClass | 23-05-19-01 |
| Cod UNSPSC | Cod UNSPSC | 27111712 |
