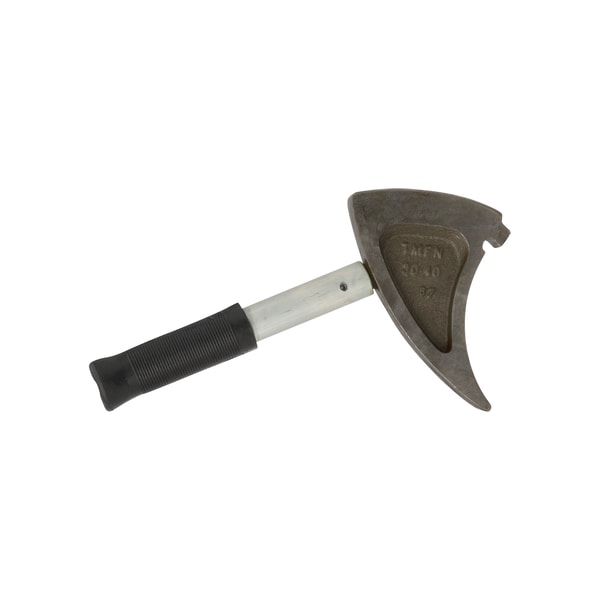

Fotografia produsului are caracter informativ
TMFN 30-40+SKF
Date tehnice produs
TMFN 30-40 - Impact Spanner

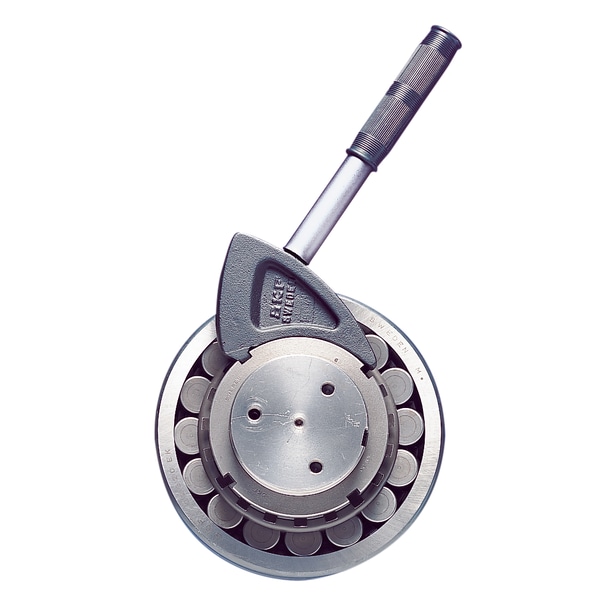

Impact Spanner The TMFN impact spanners are designed for safely tightening and loosening larger locknuts, especially after driving up a large bearing onto a tapered seating. Din fontă cu grafit sferoidal, au o suprafață specială de impact care permite transmiterea optimă a energiei de impact către piuliță.
Diametru exterior lock nut (range) (d₃)[object Object] mmDiametru exterior lock nut (range) (d₃)
Handle length (Lₕ)208 mmHandle length (Lₕ)
Nuse width (Nₖ)27 mmNuse width (Nₖ)
Nuse height (Nₕ)5.3 mmNuse height (Nₕ)
Nuse Length (f)13.5 mmNuse Length (f)
Grosime (n)27 mmGrosime (n)
Prezentare produs
| Cod produs | TMFN 30-40 |
|---|---|
| Tip produs | Impact Spanner |
| Marcă | SKF |
Dimensiuni detaliate
| Diametru exterior lock nut (range) (d₃) | Diametru exterior lock nut (range) (d₃) | [object Object] mm |
| Handle length (Lₕ) | Handle length (Lₕ) | 208 mm |
| Nuse width (Nₖ) | Nuse width (Nₖ) | 27 mm |
| Nuse height (Nₕ) | Nuse height (Nₕ) | 5.3 mm |
| Nuse Length (f) | Nuse Length (f) | 13.5 mm |
| Grosime (n) | Grosime (n) | 27 mm |
| Length (L) | Length (L) | 313 mm |
| Working length (l) | Working length (l) | 345 mm |
| Înălțime (H) | Înălțime (H) | 181 mm |
Proprietăți
| Recommended applications | Recommended applications | To safely tighten sau loosen lock nuts after driving up large bearings on tapered seatings when working cu rotating components in variety of applications cu medium to large bearings and lock nuts. |
| Series | Series | Impact spanner, TMFN |
| Type | Type | Model E |
| Allows bearing mounting | Allows bearing mounting | Nu |
| Fits on lock nuts inside SKF split pillow block housings (SNL) | Fits on lock nuts inside SKF split pillow block housings (SNL) | Nu |
| Piuliță de blocare size | Piuliță de blocare size | [object Object] |
| Suitable SKF Piuliță de blocare | Suitable SKF Piuliță de blocare | KM 32, KM 34, KM 36, KM 38, KM 40, KMFE 30, KMFE 32, KMFE 34, KMFE 36, KMFE 38, KML 34, KML 36, KML 38, KML 40, KMT 32, KMT 34, KMT 36, KMT 38, KMT 40, N 034, N 036, N 038, N 040, AN 30, AN 32, AN 34, AN 36, AN 38 |
| Handle fixation | Handle fixation | Fixed cu rubber damper |
| Material | Material | Head: spheroidal fontă;Handle: carbon steel |
| Material handle | Material handle | Steel handle cu rubber grip |
| Acoperire | Acoperire | Black phosphated head cu galvanished handle |
| Colour | Colour | Black metallic, silver |
Logistică
| Greutate netă produs | Greutate netă produs | 1.89 kg |
| Cod eClass | Cod eClass | 23-05-19-01 |
| Cod UNSPSC | Cod UNSPSC | 27111712 |
