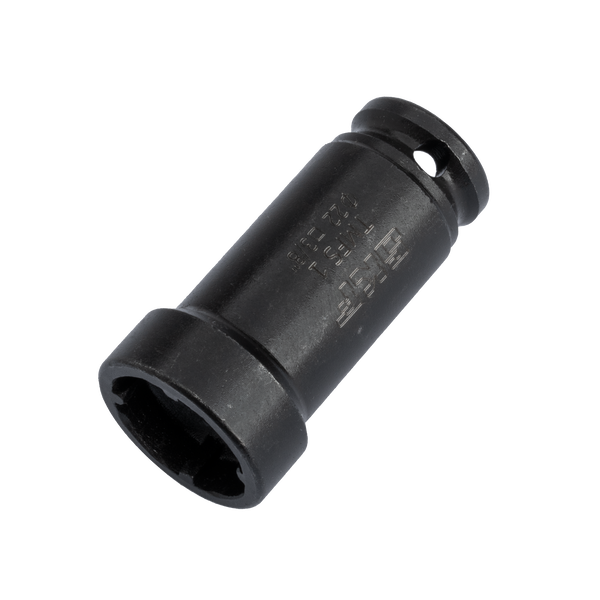

Fotografia produsului are caracter informativ
TMFS-1+SKF
Date tehnice produs
TMFS 1 - Axial lock nut socket
Axial lock nut socket The TMFS axial lock nut sockets are used to mount bearings on tapered journals sau adapter sleeves and for dismounting bearings on withdrawal sleeves. Available in 21 different sizes, they are adecvat pentru various locknuts sizes 0 to 20.
Piuliță de blocare size[object Object]Piuliță de blocare size
Diametru exterior lock nut (range) (d₃)[object Object] mmDiametru exterior lock nut (range) (d₃)
Drive connection (C)3/8"Drive connection (C)
Înălțime (H)56 mmÎnălțime (H)
Effective height (h)45 mmEffective height (h)
Diametru exterior28 mmDiametru exterior
Prezentare produs
| Cod produs | TMFS 1 |
|---|---|
| Tip produs | Axial lock nut socket |
| Marcă | SKF |
Dimensiuni detaliate
| Piuliță de blocare size | Piuliță de blocare size | [object Object] |
| Diametru exterior lock nut (range) (d₃) | Diametru exterior lock nut (range) (d₃) | [object Object] mm |
| Drive connection (C) | Drive connection (C) | 3/8" |
| Înălțime (H) | Înălțime (H) | 56 mm |
| Effective height (h) | Effective height (h) | 45 mm |
| Diametru exterior | Diametru exterior | 28 mm |
Proprietăți
| Recommended applications | Recommended applications | For a controlled use cu torque wrenches sau power tools for safe tightening sau loosening of lock nuts on shafts, adapter sleeves, and withdrawal sleeves sau in blind housings. Also particullarly adecvat pentru applications where space limitations prevent the use of hookspanners. |
| Series | Series | Axial lock nut socket, TMFS |
| Type | Type | Model A |
| Allows bearing mounting | Allows bearing mounting | Da, angle method sau cu clearance reduction measurement |
| Fits on lock nuts inside SKF split pillow block housings (SNL) | Fits on lock nuts inside SKF split pillow block housings (SNL) | Nu |
| Suitable SKF Piuliță de blocare | Suitable SKF Piuliță de blocare | KM 1 |
| Material | Material | Alloy engineering steel, hardened and tempered |
| Acoperire | Acoperire | Black oxide |
| Colour | Colour | Metallic Black |
Logistică
| Greutate netă produs | Greutate netă produs | 0.1 kg |
| Cod eClass | Cod eClass | 23-05-19-01 |
| Cod UNSPSC | Cod UNSPSC | 27111712 |
