Fotografia produsului are caracter informativ
TKRT21+SKF
Date tehnice produs

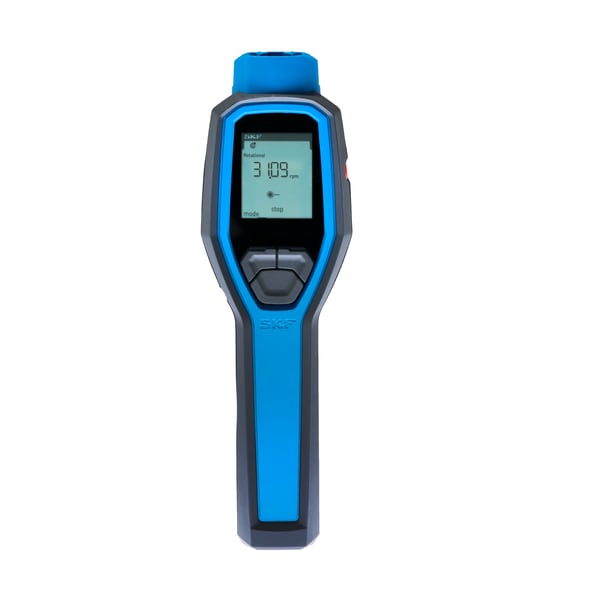

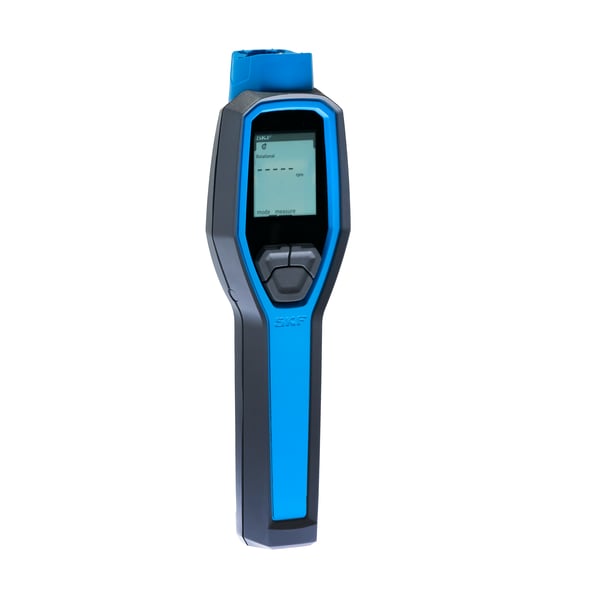

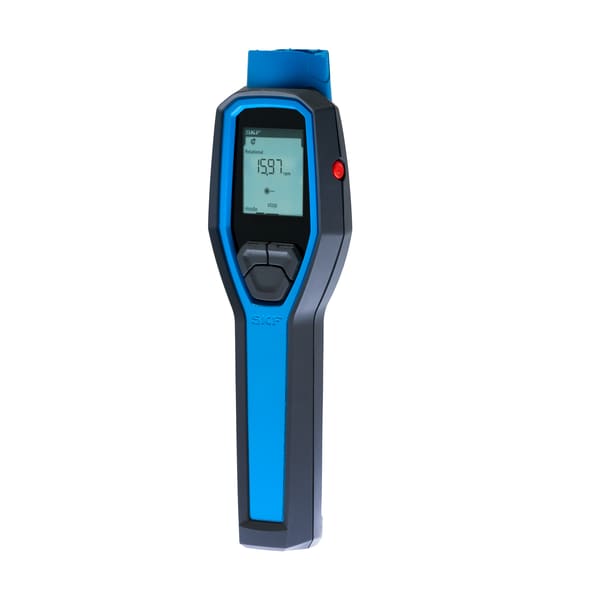

TKRT 21 - Multi-functional digital tachometer
Multi-functional digital tachometer The TKRT 21 is a multi-functional digital tachometer that uses laser sau contact measurement to determine rotational and linear speeds. The device allows fast, easy measurement at a safe distance from rotating machinery. It offers high speed and distance versatility in several measurement modes. In addition, it facilitates easy measurement when straight-line access is difficult. The TKRT 21 is supplied cu a basic set of contact adaptors and can be used cu either standard sau rechargeable batteries.
Instrument dimensions295 x 70 x 38 mmInstrument dimensions
Case dimensions (l x h x w)260 x 85 x 180 mmCase dimensions (l x h x w)
Optical measurement rotational speed (range)[object Object] r/minOptical measurement rotational speed (range)
Contact measurement rotational speed (range)[object Object] r/minContact measurement rotational speed (range)
Contact measurement linear speed (range)[object Object] m/minContact measurement linear speed (range)
Contact measurement distance (range)[object Object] mmContact measurement distance (range)
Prezentare produs
| Cod produs | TKRT 21 |
|---|---|
| Tip produs | Multi-functional digital tachometer |
| Marcă | SKF |
Dimensiuni detaliate
| Instrument dimensions | Instrument dimensions | 295 x 70 x 38 mm |
| Case dimensions (l x h x w) | Case dimensions (l x h x w) | 260 x 85 x 180 mm |
Performanță
| Optical measurement rotational speed (range) | Optical measurement rotational speed (range) | [object Object] r/min |
| Contact measurement rotational speed (range) | Contact measurement rotational speed (range) | [object Object] r/min |
| Contact measurement linear speed (range) | Contact measurement linear speed (range) | [object Object] m/min |
| Contact measurement distance (range) | Contact measurement distance (range) | [object Object] mm |
Proprietăți
| Recommended applications | Recommended applications | Used to determine the speed of motors sau shafts, as well as for measuring the speed and length of moving surfaces such as V-belts and conveyor belts. |
| Display | Display | LCD display |
| Measurement types | Measurement types | Actual, Minimum, Maximum, Average, Total |
| Optical measurement method | Optical measurement method | Built in laser |
| Optical measurement modes | Optical measurement modes | r/min, Hz |
| Optical measurement accuracy (+/-) | Optical measurement accuracy (+/-) | 0.01 % |
| Angle of operation (max) | Angle of operation (max) | 30 ° |
| Contact measurement rotational speed modes | Contact measurement rotational speed modes | r/min, Hz |
| Contact measurement accuracy (+/-) | Contact measurement accuracy (+/-) | 0.1 % |

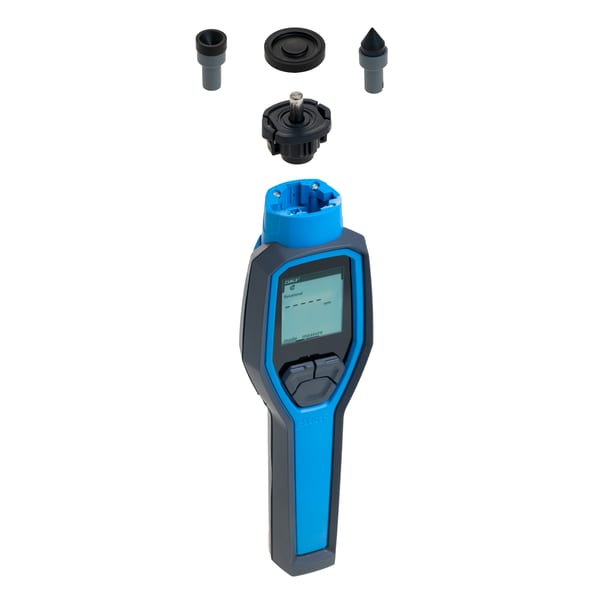

| Contact accessories | Contact accessories | Contact adaptor;Extension shaft;2x Conical tips;2 x Contact wheels C=0.1 m and C=6 in |
| Linear measurement modes (with contact adaptor) | Linear measurement modes (with contact adaptor) | m/min, m/s, feet/min, feet/s, inch/min, inch/s |
| Contact measurement accuracy (+/-) | Contact measurement accuracy (+/-) | 0.1 % |
| Distance measurement modes (with contact adaptor) | Distance measurement modes (with contact adaptor) | metres, feet, inch |
| Memory | Memory | - MB |
| Laser type | Laser type | Visible red line laser |
| Laser wavelength | Laser wavelength | 650 nm |
| Laser power max | Laser power max | 1 mW |
| Auto switch off | Auto switch off | 10 min, 5 min, off |
| Tripod connector | Tripod connector | Da, (1/4-20 UNC) |
| Carcasă material | Carcasă material | ABS plastics |
| Colour | Colour | Blue;Dark Grey |
| Battery | Battery | 2x AA (Alkaline (incl.) sau Rechargable) |
| Battery life | Battery life | 12 h |
| Power adapter | Power adapter | Nu |
| Instrument weight | Instrument weight | 270 g |
| Degree of protection (IP) | Degree of protection (IP) | IP40 |
| Operating temperature range | Operating temperature range | [object Object] °C |
| Recommended storage temperature | Recommended storage temperature | [object Object] °C |
| Relative humidity | Relative humidity | 10 to 90%, non-condensing |

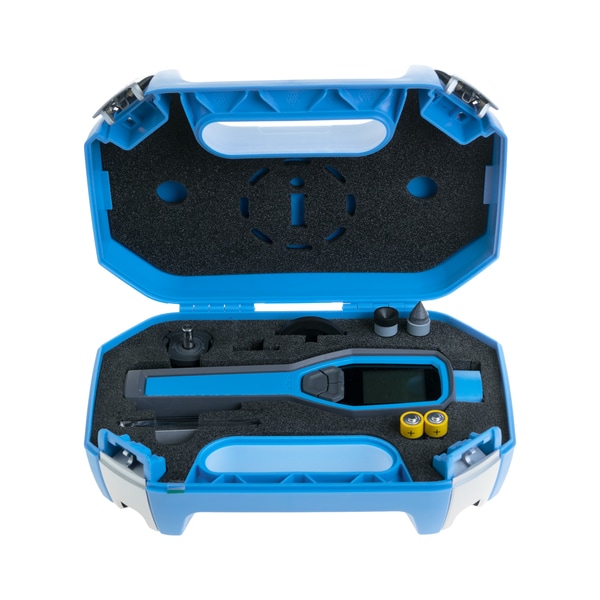

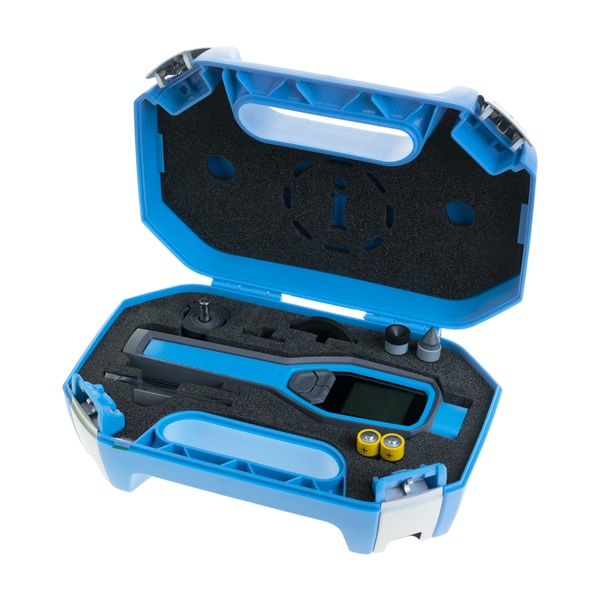

| Content | Content | 1 x Tachometer TKRT 21;1x Contact adaptor;1 x Extension shaft;2 x conical tips;2 x wheels C=0.1 m and C=6 in;2 x AA batteries;1 x Set of reflective tape;1 x Instructions for use MP5508;1x Carrying case size A |
Logistică
| Greutate netă produs | Greutate netă produs | 0.77 kg |
| Cod eClass | Cod eClass | 23-05-19-01 |
| Cod UNSPSC | Cod UNSPSC | 41112202 |
