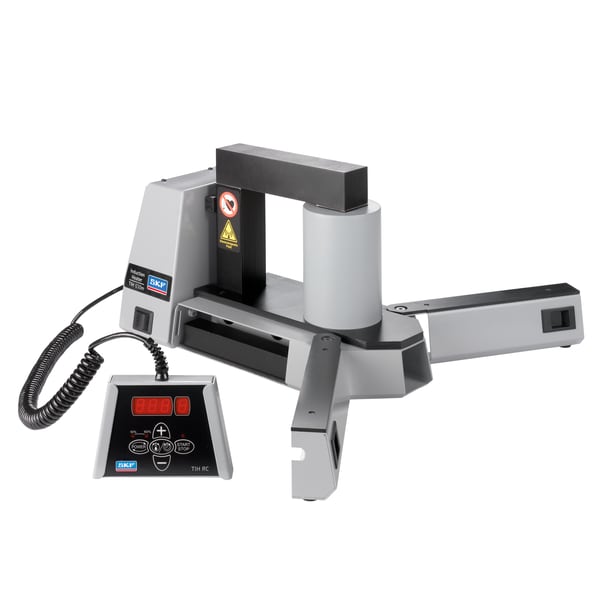

Fotografia produsului are caracter informativ
TIH 030M/230V+SKF
Date tehnice produs
TIH 030M/230V - Small induction heater
Small induction heater The small induction heater and is designed for the hot mounting of bearings. This compact heater is ideal for use on workbenches, yet it can be easily carried for on-site applications. Supplied cu three yokes and foldable support arms, the heater is capable of heating bearings cu a diametre de alezaj de 20 mm sau more and cu a maximum weight of 40 kg.
Operating area width100 mmOperating area width
Standard yokes for minimal workpiece diametru alezaj20, 40, 65 mmStandard yokes for minimal workpiece diametru alezaj
Optional yokes for minimal workpiece diametru alezaj30, 60 mmOptional yokes for minimal workpiece diametru alezaj
Heating performance example (bearing, weight, temperature, time)23136 CC/W33, 28 kg, 110 °C, 20 minHeating performance example (bearing, weight, temperature, time)
Recommended applicationsFans and blowers;Compressors;Roller conveyors;Bearing houses;Gear boxes;Electrical motors;Pump installations;EnginesRecommended applications
TypeInduction heater, workshop benchType
Prezentare produs
| Cod produs | TIH 030M/230V |
|---|---|
| Tip produs | Small induction heater |
| Marcă | SKF |
Dimensiuni detaliate
| Operating area width | Operating area width | 100 mm |
| Standard yokes for minimal workpiece diametru alezaj | Standard yokes for minimal workpiece diametru alezaj | 20, 40, 65 mm |
| Optional yokes for minimal workpiece diametru alezaj | Optional yokes for minimal workpiece diametru alezaj | 30, 60 mm |
Performanță
| Heating performance example (bearing, weight, temperature, time) | Heating performance example (bearing, weight, temperature, time) | 23136 CC/W33, 28 kg, 110 °C, 20 min |
Proprietăți
| Recommended applications | Recommended applications | Fans and blowers;Compressors;Roller conveyors;Bearing houses;Gear boxes;Electrical motors;Pump installations;Engines |
| Type | Type | Induction heater, workshop bench |
| Series | Series | TIH 030m |
| Heating method | Heating method | Induction, low frequency |
| Suitable for mounting | Suitable for mounting | Da |
| Suitable for dismounting | Suitable for dismounting | Nu |
| Solid workpiece weight (max, mounting) | Solid workpiece weight (max, mounting) | 20 kg |
| Bearing weight (max) | Bearing weight (max) | 40 kg |
| Workpiece diametru alezaj (montaj) | Workpiece diametru alezaj (montaj) | [object Object] mm |
| Workpiece outer diameter | Workpiece outer diameter | [object Object] mm |
| Power consumption (max) | Power consumption (max) | 2 kVA |
| Workpiece width (max) | Workpiece width (max) | 100 mm |
| Workpiece cross section height (max) | Workpiece cross section height (max) | 135 mm |
| Operating area height | Operating area height | 135 mm |
| Coil diameter | Coil diameter | 95 mm |
| Main yoke type | Main yoke type | Loose yoke |
| Yoke storage | Yoke storage | Da, internal |
| Voltage | Voltage | 200-240 V |
| Voltage frequency | Voltage frequency | 50 / 60 Hz |
| Current (max) | Current (max) | 10 A |
| Temperature measurement | Temperature measurement | Magnetic probe K-type |
| Number of temperature sensors | Number of temperature sensors | 1 |
| Demagnetisation after heating | Demagnetisation after heating | Da |
| Error guiding codes | Error guiding codes | Da |
| Thermal overload protection | Thermal overload protection | Da |
| Bearing support arms | Bearing support arms | Da, foldable |
| Display | Display | 7 segment LED display |
| Forced air cooling | Forced air cooling | Nu |
| Power setting | Power setting | 50%, 100% |
| Thermometer mode | Thermometer mode | Da |
| Time mode | Time mode | Da |
| Remote control panel (wired) | Remote control panel (wired) | Da, cu LED display |
| Heating time control | Heating time control | [object Object] s |
| Heating time steps | Heating time steps | 6 s |
| Heating temperature control | Heating temperature control | [object Object] °C |
| Heating temperature steps | Heating temperature steps | 1 °C |
| Carcasă material | Carcasă material | Steel; Glass fibre filled polyamide |
| Colour | Colour | Grey;Black |
| Content | Content | Heater, Remote control, Temperature probe (TIH P20), 3 standard yokes (TIH 030-Y7, TIH 030-Y4, TIH 030-Y2), 1 pair of heat resistant gloves (TMBA G11), 1 tube of anti fretting paste (LAGF 3E/0.035) and 1 shucko mains plug |
Logistică
| Greutate netă produs | Greutate netă produs | 21.2 kg |
| Cod eClass | Cod eClass | 23-05-19-01 |
| Cod UNSPSC | Cod UNSPSC | 40101831 |
