TMMA75H+SKF
Date tehnice produs

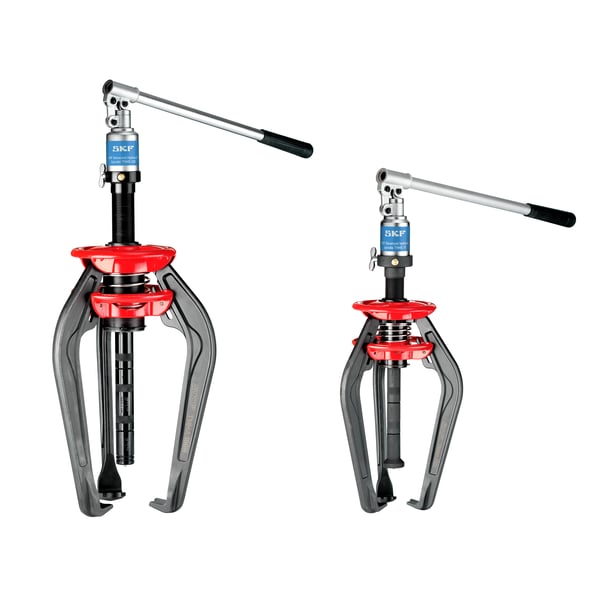

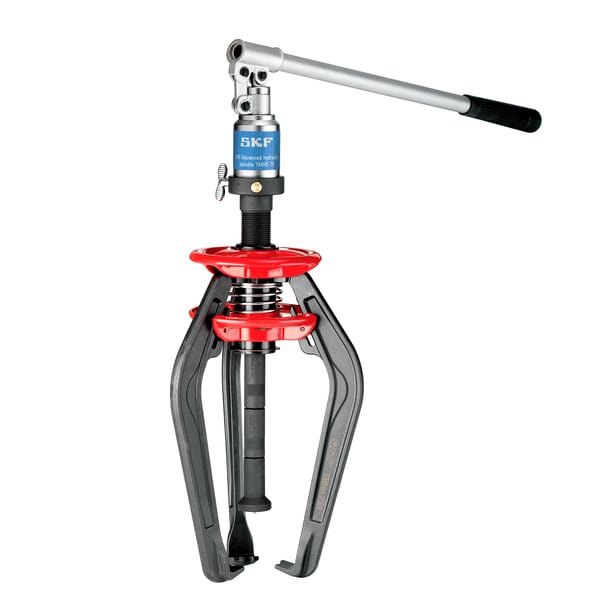

TMMA 75H - EasyPull hydraulic puller
EasyPull hydraulic puller The SKF EasyPull TMMA 75H is one of the most user-friendly and safest bearing dismounting tools on the market. It is very robust and ergonomically designed and features spring-operated arms that enable the user to position the puller behind the component cu just one movement. The TMMA 75H is hydraulically assisted and effortless reaches withdrawal forces up to 75 kN for components cu a maximum outer diameter of 200 mm (7.8 in).
Lățime of grip external[object Object] mmLățime of grip external
Effective arm length200 mmEffective arm length
Claw height9.8 mmClaw height
Claw length18 mmClaw length
Total Arm length327 mmTotal Arm length
Claw width28 mmClaw width
Prezentare produs
| Cod produs | TMMA 75H |
|---|---|
| Tip produs | EasyPull hydraulic puller |
| Marcă | SKF |
Dimensiuni detaliate
| Lățime of grip external | Lățime of grip external | [object Object] mm |
| Effective arm length | Effective arm length | 200 mm |
| Claw height | Claw height | 9.8 mm |
| Claw length | Claw length | 18 mm |
| Total Arm length | Total Arm length | 327 mm |
| Claw width | Claw width | 28 mm |
| Hydraulic spindle, piston stroke | Hydraulic spindle, piston stroke | 75 mm |
| Puller adaptor thread | Puller adaptor thread | UN 1.25 x 12 tpi |
| Total spindle length | Total spindle length | 485 mm |
Proprietăți
| Recommended applications | Recommended applications | For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications cu an interference fit on the shaft |
| Suitable for workpiece dismounting from a Cilindric seating (straight shaft) | Suitable for workpiece dismounting from a Cilindric seating (straight shaft) | Da |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | Suitable for bearing dismounting from a Tapered seating (conical shaft) | Da |
| Suitable for bearing dismounting from a Sleeve (adapter sau withdrawal sleeve) | Suitable for bearing dismounting from a Sleeve (adapter sau withdrawal sleeve) | Da |
| Suitable for workpiece dismounting from a Blind arrangement (housing cu shaft) | Suitable for workpiece dismounting from a Blind arrangement (housing cu shaft) | Nu |
| Suitable for workpiece dismounting from a Carcasă | Suitable for workpiece dismounting from a Carcasă | Nu |
| Suitable for bearing type(s) | Suitable for bearing type(s) | All |
| Dismounting force generation | Dismounting force generation | Hydraulic spindle (TMHS 75) |
| Special features | Special features | Spring operated deschising mechanism |
| Number of arms | Number of arms | 3 |
| Pulling force (max) | Pulling force (max) | 75 kN |
| Spindle nose piece | Spindle nose piece | yes, ⌀ 30mm |
| Colour | Colour | Black, cu red handle |
| Material | Material | Alloy engineering steels, hardened and tempered |
| Acoperire | Acoperire | Black phosphated, red powdercoated |
| Content | Content | 1x Puller TMMA 75H ; 1x Mounted hydraulic spindle TMHS 75; 2x Spindle extension pieces, 1x Nuse piece, 1x Handle, 1x Handle rod;1x Printed instructions for use |
Logistică
| Greutate netă produs | Greutate netă produs | 7.09 kg |
| Cod eClass | Cod eClass | 23-05-19-01 |
| Cod UNSPSC | Cod UNSPSC | 27111712 |
