99352+SKF
Date tehnice produs

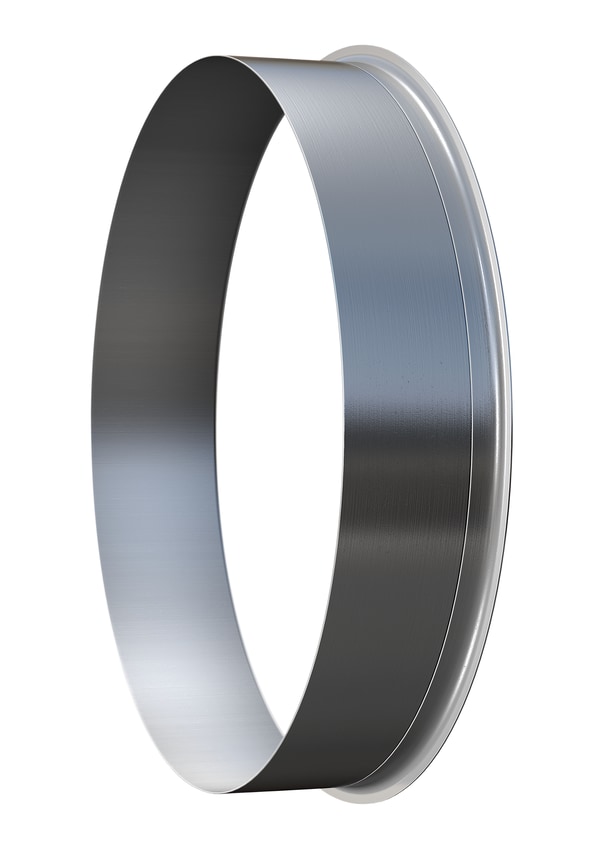

99352 - SKF Speedi-Sleeve
SKF Speedi-Sleeve SKF Speedi-Sleeve provides an alternative to costly repairs for worn sau damaged shafts. This thin-walled sleeve, specially developed by SKF, is simply positioned over the relevant part of the shaft and provides a smooth counterface that is optimized for radial shaft etanșări. Use of SKF Speedi-Sleeve can prevent the need for costly shaft treatments that may involve machining, hardening, plunge grinding sau disassembly. SKF Speedi-Sleeve Gold is an enhanced version of standard SKF Speedi-Sleeve, offering improved resistance to abrasive wear.
Lățime13.67 mmLățime
D101.6 mmDiametru exterior nominal
Bmax. 46.05 mmInstallation distance
Prezentare produs
| Cod produs | 99352 |
|---|---|
| Tip produs | SKF Speedi-Sleeve |
| Marcă | SKF |
Dimensiuni detaliate
| Lățime | Lățime | 13.67 mm |
| Diametru arbore, minimum | Diametru arbore, minimum | 89.92 mm |
| Diametru arbore, maximum | Diametru arbore, maximum | 90.07 mm |
| Diametru arbore | Diametru arbore | 89.99 mm |
| Diametru exterior flanșă demontabilă | Diametru exterior flanșă demontabilă | 101.6 mm |
| Seal seat width | Seal seat width | 11.13 mm |
Proprietăți
| Type | Type | Standard |
| Execuție | Execuție | SSLV |
Logistică
| Greutate netă produs | Greutate netă produs | 0.611 kg |
| Cod eClass | Cod eClass | 23-05-92-90 |
| Cod UNSPSC | Cod UNSPSC | 31171605 |
Dimensiuni detaliate
| d1 | Diametru arbore range | min. 89.92 mm |
| d1 | Diametru arbore range | max. 90.07 mm |
| d1 | Diametru nominal alezaj | 89.99 mm |
| D | Diametru exterior nominal | 101.6 mm |
| Tolerance diametru exterior D | Tolerance diametru exterior D | ± 1.57 mm |
| b | Numinal width | 13.67 mm |
| Tolerance width b | Tolerance width b | ± 0.8 mm |
| b1 | Numinal width of plain sleeve (up to flange groove) | 11.13 mm |
| Tolerance width b1 | Tolerance width b1 | ± 0.8 mm |
| B | Installation distance | max. 46.05 mm |
| r | Bucșăing radius (chamfer) between bore and side face | max. 3.18 mm |
| t | Numinal thickness | 0.25 mm |
