TSNW20-G4+INA

Date tehnice INA/Schaeffler

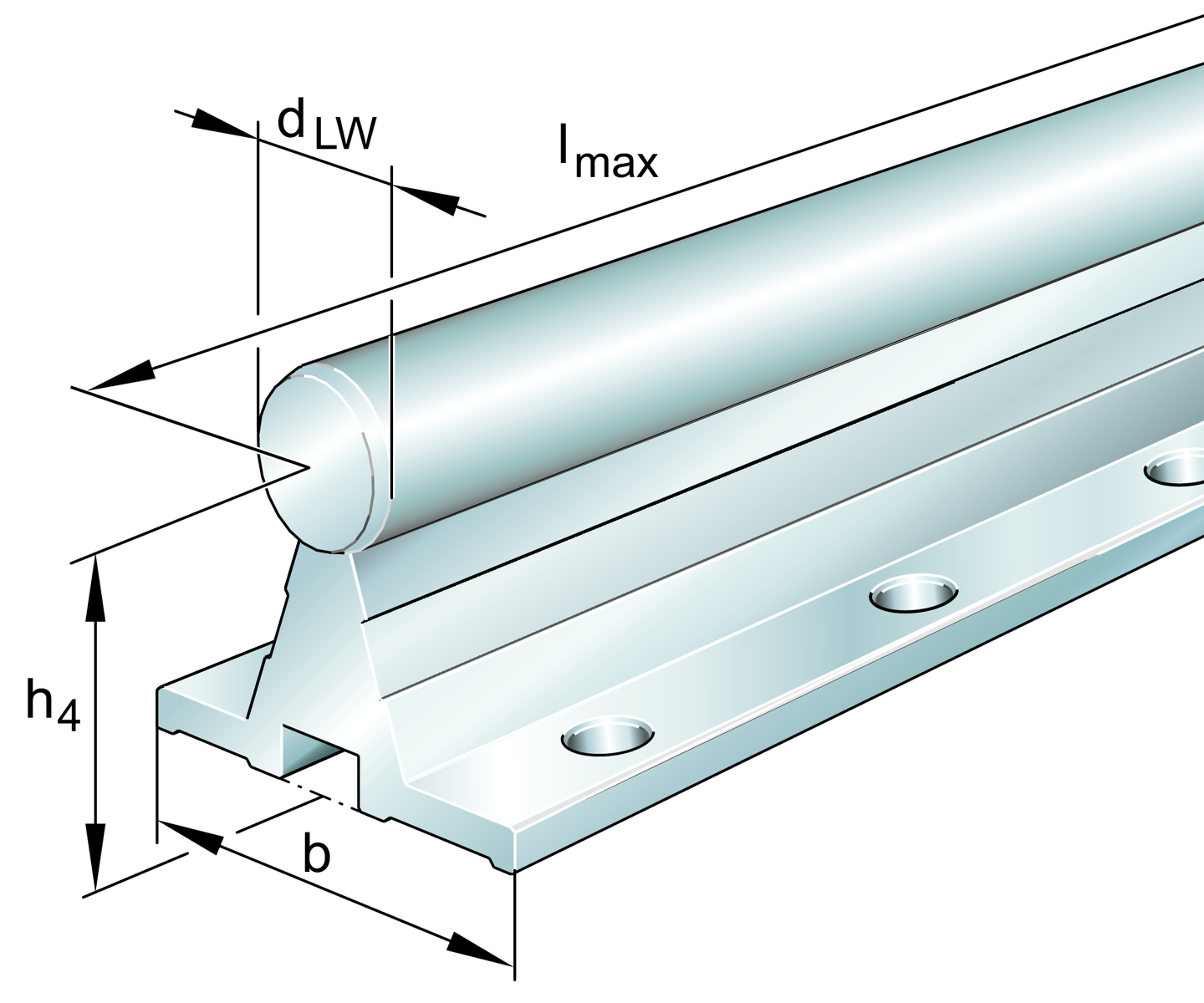

TSNW20-G4 - Guideways, metric sizes

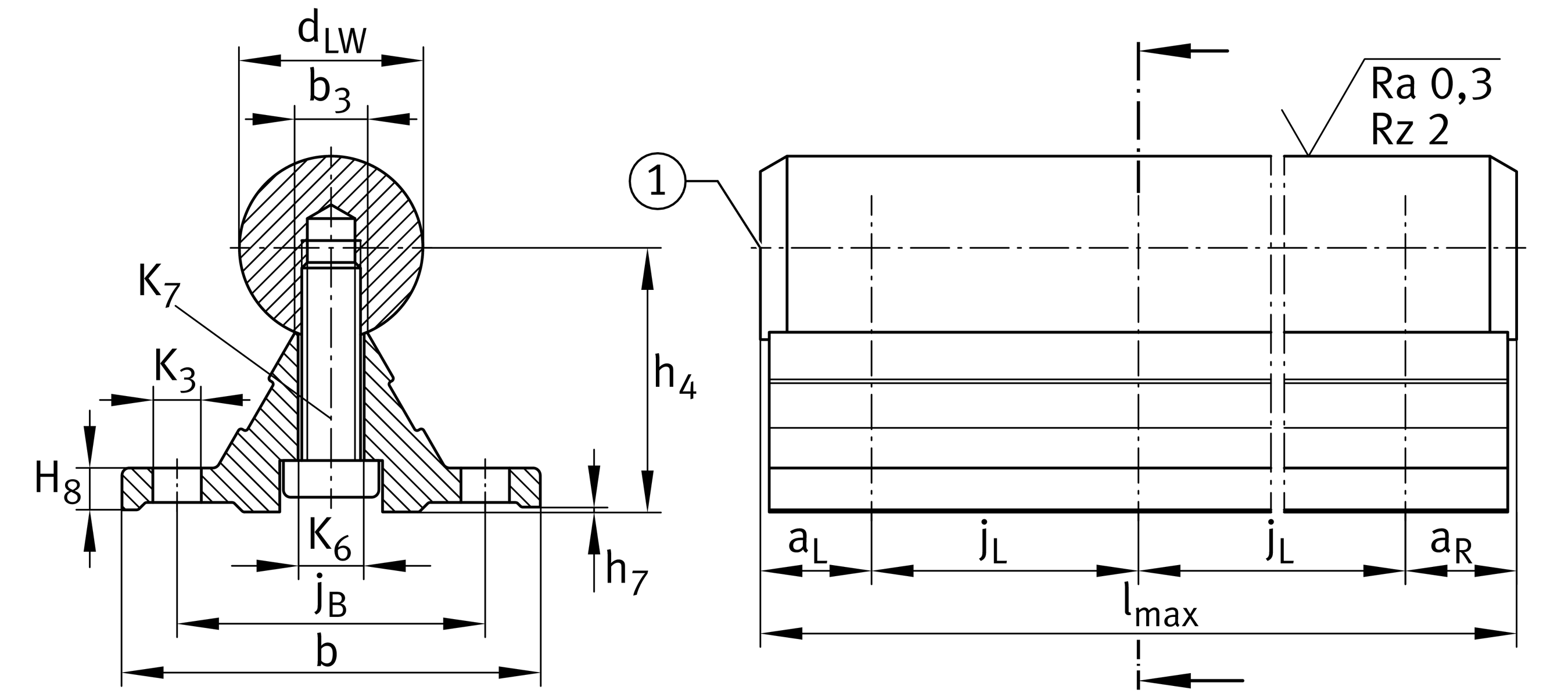

d LW	Diametru arbore	20 mm
d LW	Dimension of shaft and support rail unit	20
dLW Tol	Diameter tolerance shaft	h6
h 4	Înălțime dimension	32 mm
h 4 tol	Înălțime dimension tolerance (High)	0,1 mm
h 4 tol	Înălțime dimension tolerance (Low)	-0,1 mm
	Accuracy class h4	G4
	Variation from h4	0,03 mm
b	Support rail width bottom	52 mm
L max	Shaft and support rail unit-length	4.000 mm
L tol max	Length tolerance (max)	2 mm
L tol min	Length tolerance (min)	-2 mm
≈m	Masă	3,8 kg/m

a L min	Distanță filet aL (min)	20 mm
a L max	Distanță filet aL (max)	92 mm
a R min	Distanță filet aR (min)	20 mm
a R max	Distanță filet aR (max)	92 mm
b 3	Support rail width prism	7,8 mm
H 8	Support rail thickness foot	6 mm
h 7	Gap dimension support body foot	0,2 mm
j B	Bore width distance jB	37 mm
j L	Bore length distance jL	100 mm
K 3	Adjacent construction bore	6,6 mm
K 6	Bore connection construction	6,6 mm
K 7	Dimensiune șurub	M6x25
m s	Shaft and Support rail unit weight	3,8 kg/m
