KGBO25-PPAS+INA
Date tehnice INA/Schaeffler

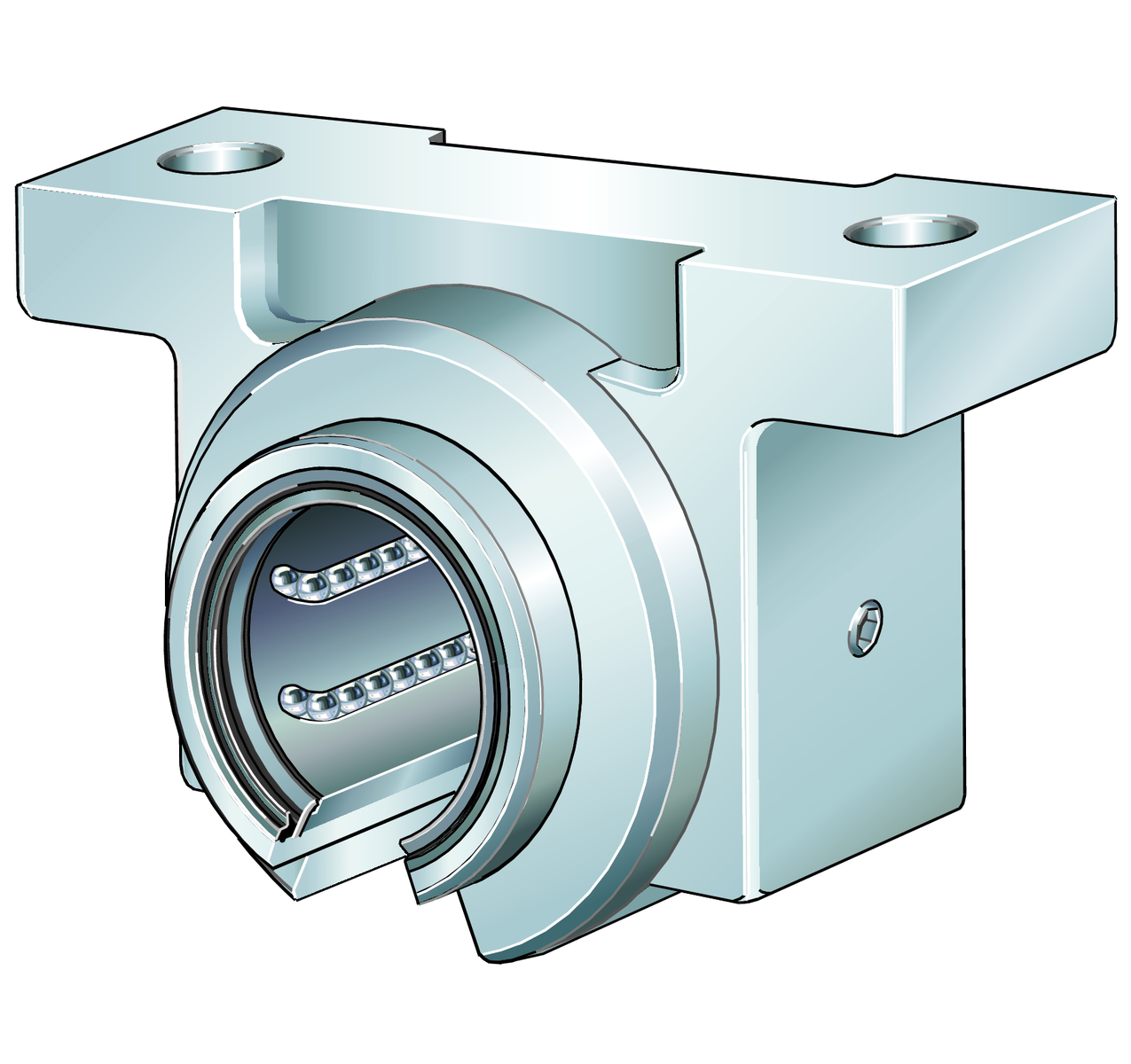

KGBO25-PP-AS - Linear Ball Bearing and Carcasă Unit
Linear ball bearing and housing unit; execuție deschisă, etanșat, uns, cu posibilitate de relubrifiere; execuție anticorozivă posibilă
B80 mmLățime
Prezentare produs
| Cod produs | KGBO25-PP-AS |
|---|---|
| Tip produs | Linear Ball Bearing and Carcasă Unit |
| Marcă | INA |
| Număr material Schaeffler | 0015663500000 |
| Tip de bază | KGBO25 |
| Masa | 0.49 kg |
| CAD disponibil | Da |
| Date de calcul disponibile | Nu |
Variantă tehnică și sufixe
| Seal | PP | |
| Relubrifiere facility | AS |
Technical data
| Ball rows | 5 | |
| ≈m | Masă | 0,49 kg |
Dimensiuni principale și date de performanță

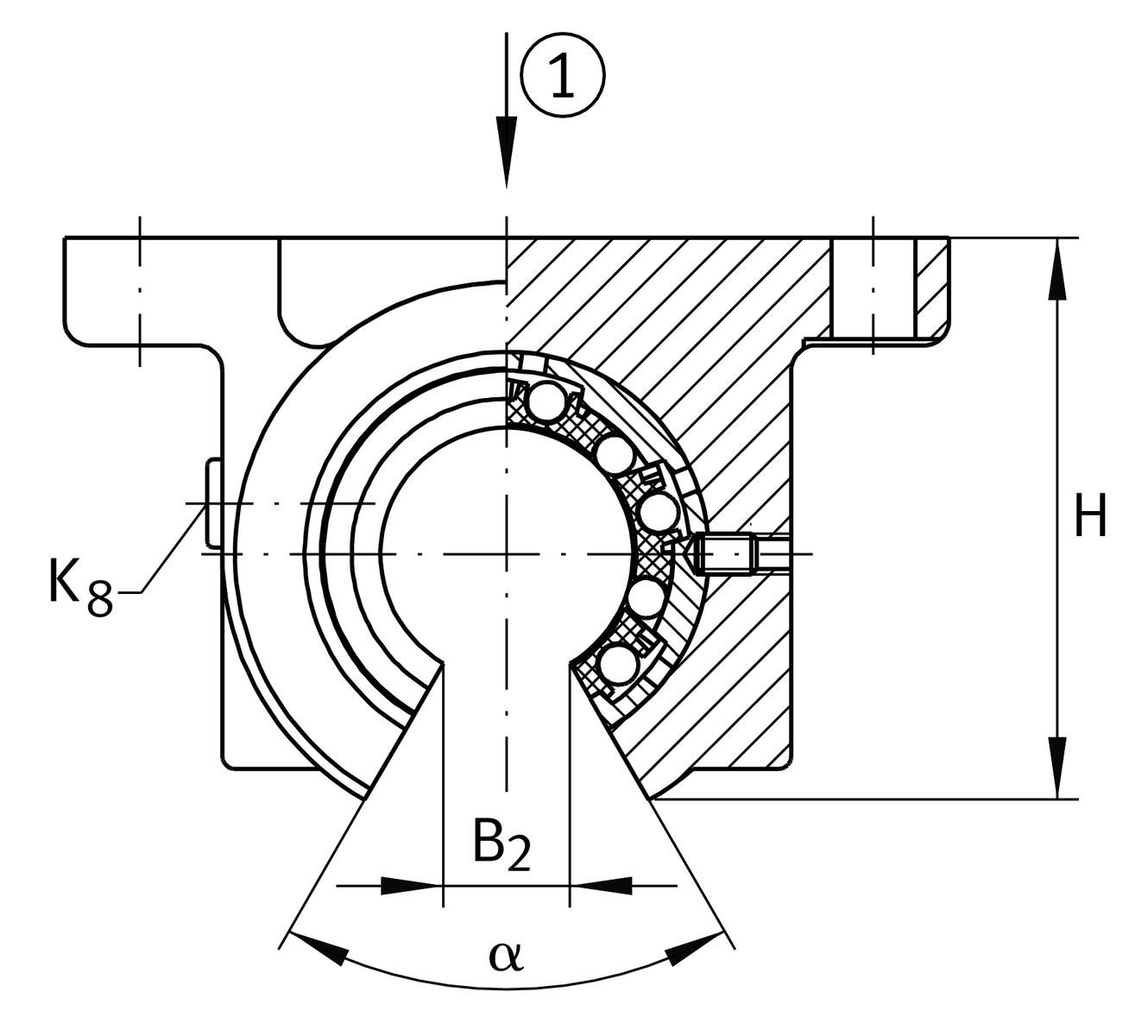

| H | Înălțime centru | 54,5 mm |
| L | Length | 58 mm |
| Tol L | Toleranță | h12 |
| B | Lățime | 80 mm |
| C | Capacitate dinamică | 2.850 N |
| C 0 | Capacitate statică C0 | 2.330 N |
Dimensiuni de montaj
| J B | 68 mm | |
| Tol J B | Toleranță superioară | 0,15 mm |
| Tol J B | Toleranță inferioară | 0,15 mm |
| B 1 | 55 mm | |
| A 5 | 40 mm | |
| Tol A 5 | Toleranță superioară | 0,02 mm |
| Tol A 5 | Toleranță inferioară | 0,02 mm |
| B 2 | 12,5 mm | |
| L 4 | Distanță | 28 mm |
| L 5 | Distanță | 40 mm |

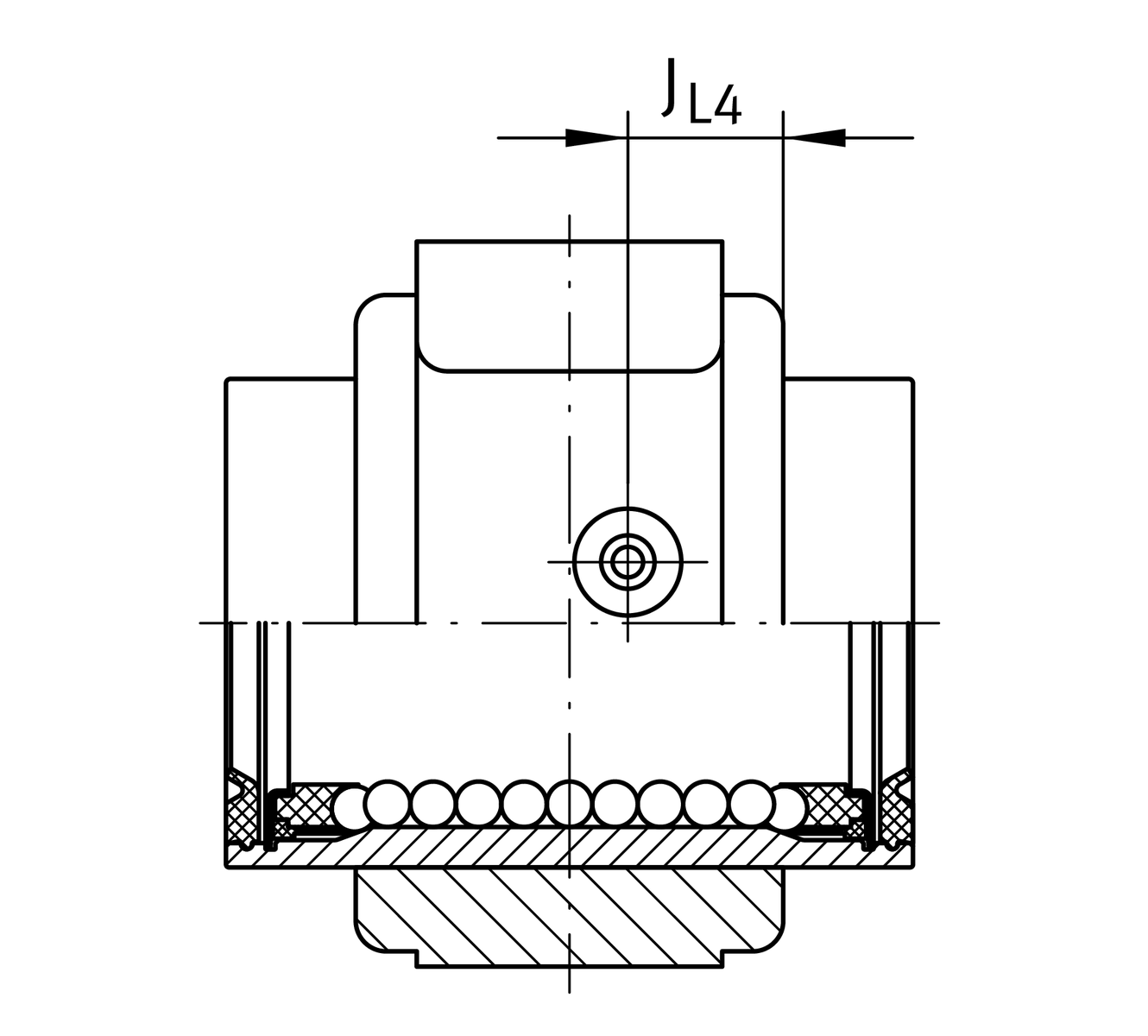

| J L 4 | Distanță | 15 mm |
| H 2 | Înălțime arbore | 30 mm |
| Tol H 2 | Toleranță superioară | 0,015 mm |
| Tol H 2 | Toleranță inferioară | 0,015 mm |
| A 3 | 23 mm | |
| H 6 | 10 mm | |
| N ! | 6,6 mm | |
| N 3 | 11 mm | |
| K 5 | M6 | |
| K 8 | Niplu de ungere | NIPA1 |
| α | Angle | 60 ° |
