KGBAO40-PP-AS+INA
Date tehnice INA/Schaeffler

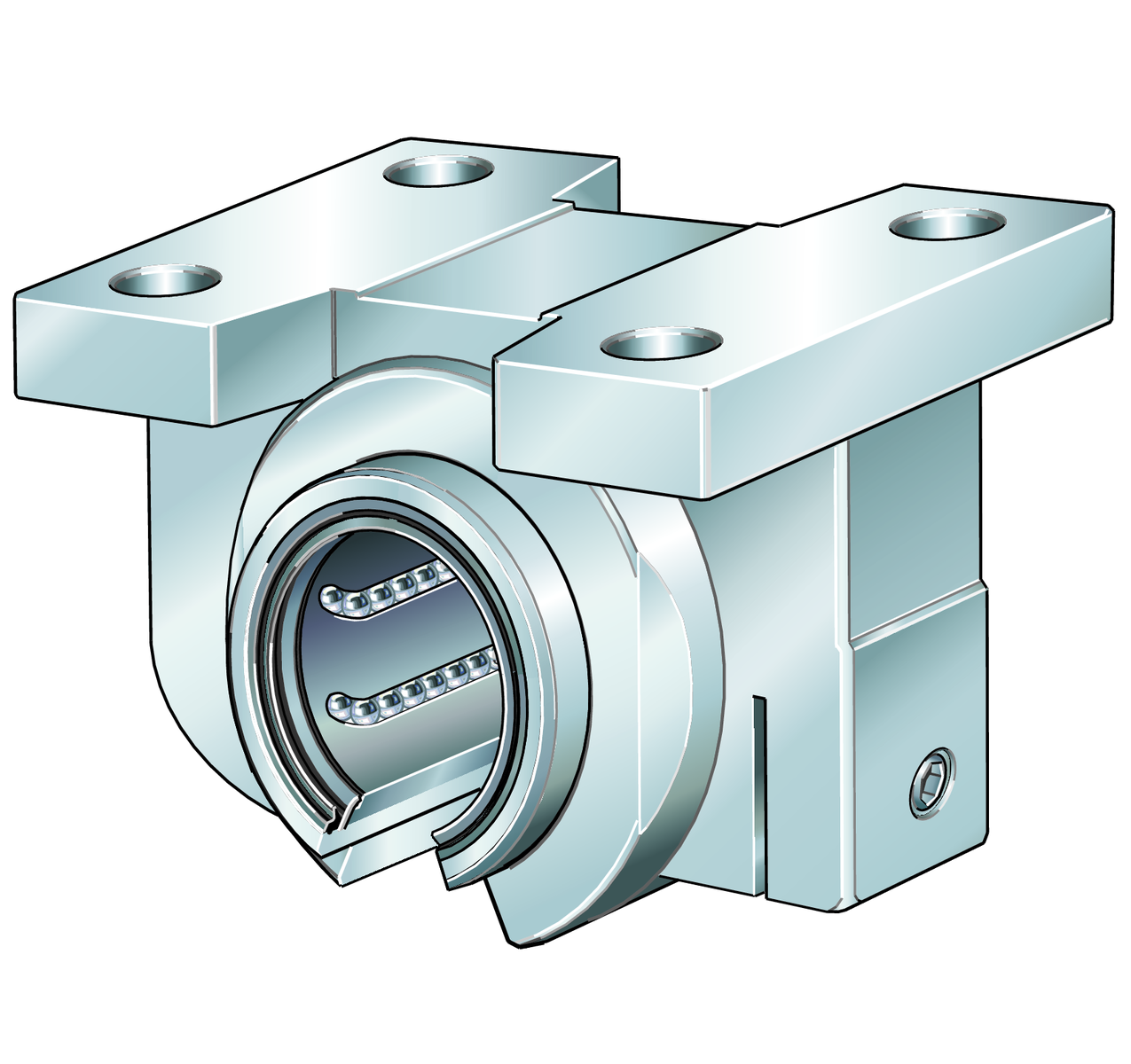

KGBAO40-PP-AS - Linear Ball Bearing and Carcasă Unit
Linear ball bearing and housing unit; execuție deschisă, etanșat, uns, cu posibilitate de relubrifiere; execuție anticorozivă posibilă
B108 mmLățime
Prezentare produs
| Cod produs | KGBAO40-PP-AS |
|---|---|
| Tip produs | Linear Ball Bearing and Carcasă Unit |
| Marcă | INA |
| Număr material Schaeffler | 0017439020000 |
| Tip de bază | KGBAO40 |
| Masa | 1.07 kg |
| CAD disponibil | Da |
| Date de calcul disponibile | Nu |
Variantă tehnică și sufixe
| Size code | 40 | |
| Seal | PP | |
| Relubrifiere facility | AS |
Technical data
| Ball rows | 5 | |
| ≈m | Masă | 1,07 kg |

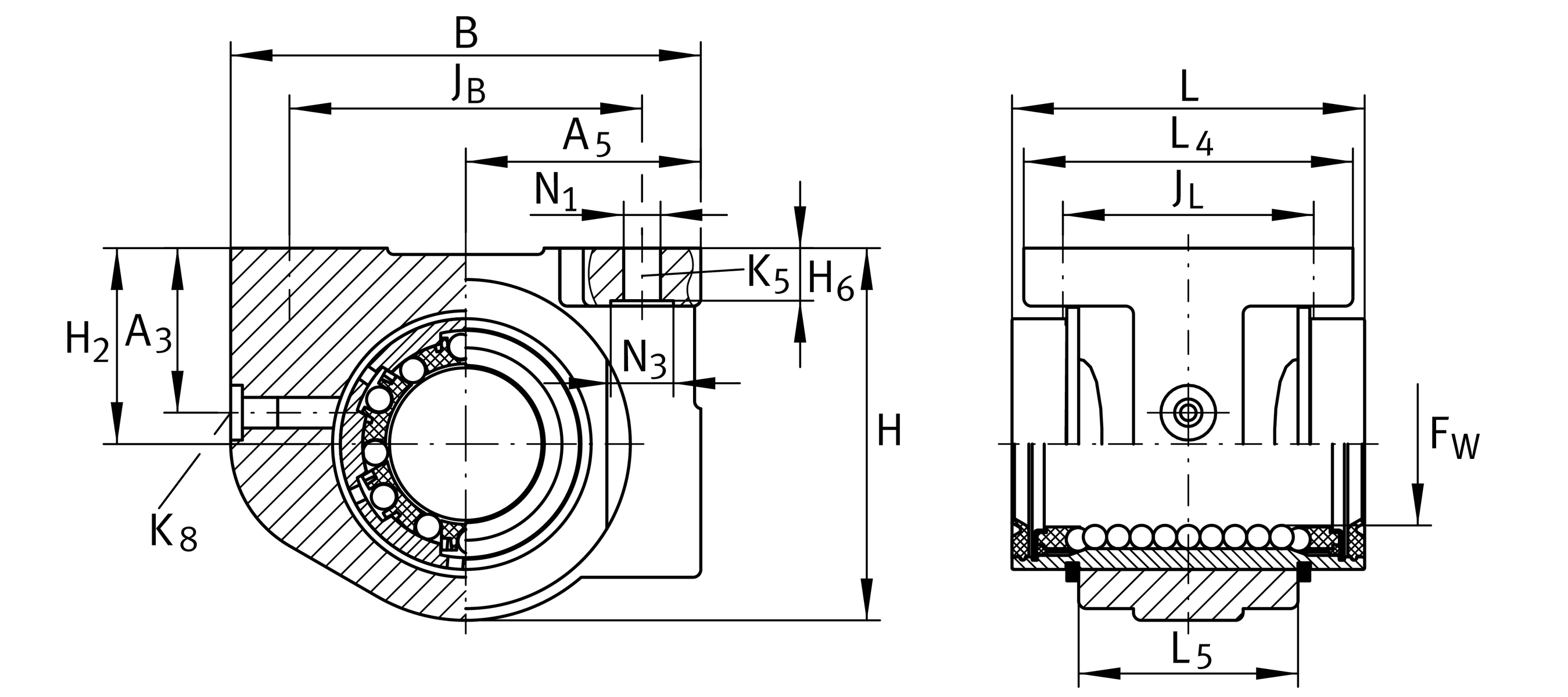

Dimensiuni principale și date de performanță
| F W | Diameter of ball complement | 40 mm |
| H | Înălțime | 82,5 mm |
| L | Length | 80 mm |
| Tol L | Toleranță | h12 |
| B | Lățime | 108 mm |
| C | Capacitate dinamică C | 6.100 N |
| C 0 | Capacitate statică C0 | 4.600 N |
Dimensiuni de montaj
| J B | 86 mm | |
| Tol J B | Toleranță superioară | 0,2 mm |
| Tol J B | Toleranță inferioară | 0,2 mm |
| A 5 | 54 mm | |
| Tol A 5 | Toleranță superioară | 0,015 mm |
| Tol A 5 | Toleranță inferioară | 0,015 mm |
| B 2 | 18,2 mm | |
| L 4 | 78 mm | |
| L 5 | 56 mm | |
| J L | 58 mm | |
| Tol J L | Toleranță superioară | 0,2 mm |
| Tol J L | Toleranță inferioară | 0,2 mm |

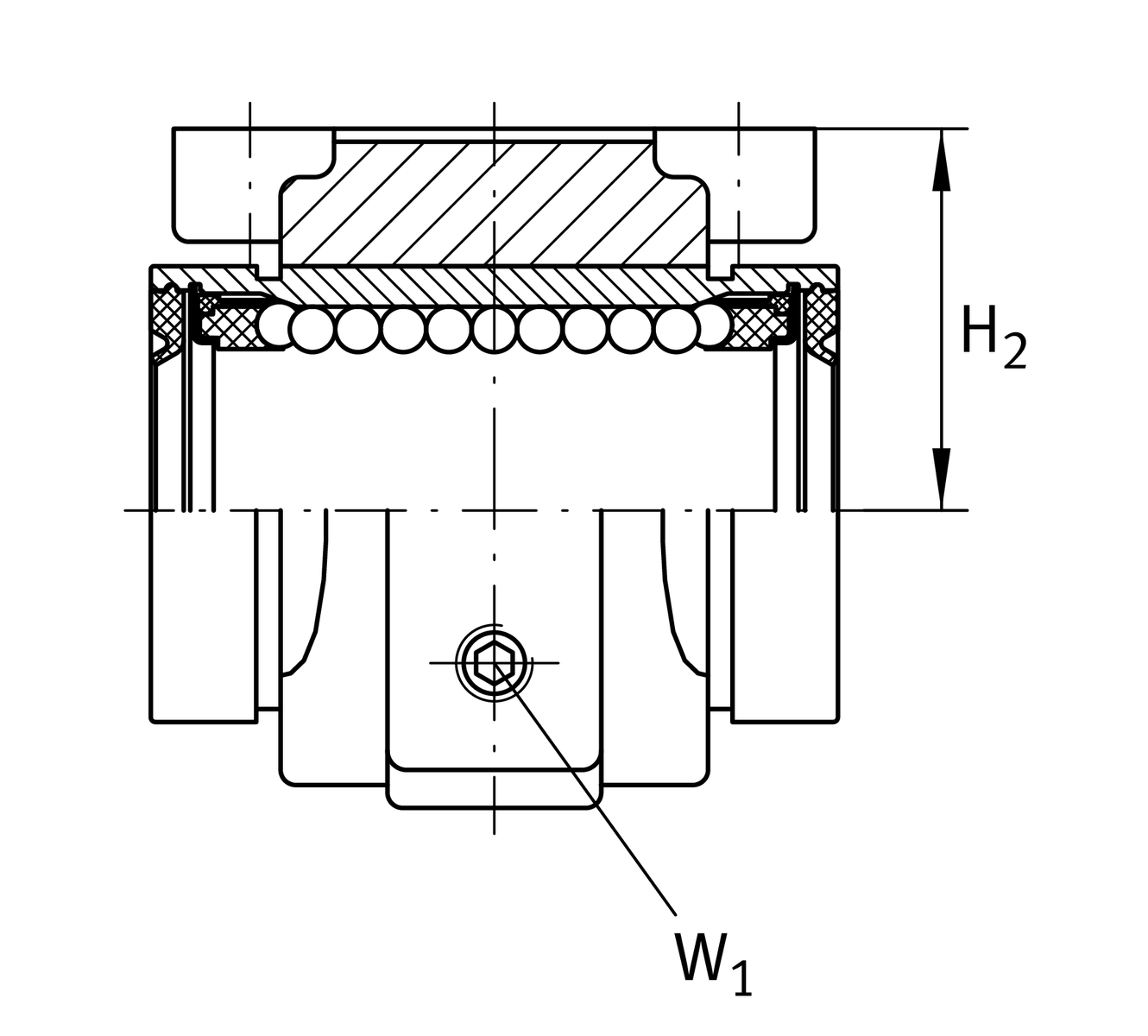

| H 2 | Înălțime arbore | 45 mm |
| Tol H 2 | Toleranță superioară | 0,01 mm |
| Tol H 2 | Toleranță inferioară | 0,01 mm |
| A 3 | 18 mm | |
| H 6 | 11 mm | |
| Tol H 6 | Toleranță | 0,5 mm |
| N 1 | 9,2 mm | |
| N 3 | 15 mm | |
| K 5 | M8 | |

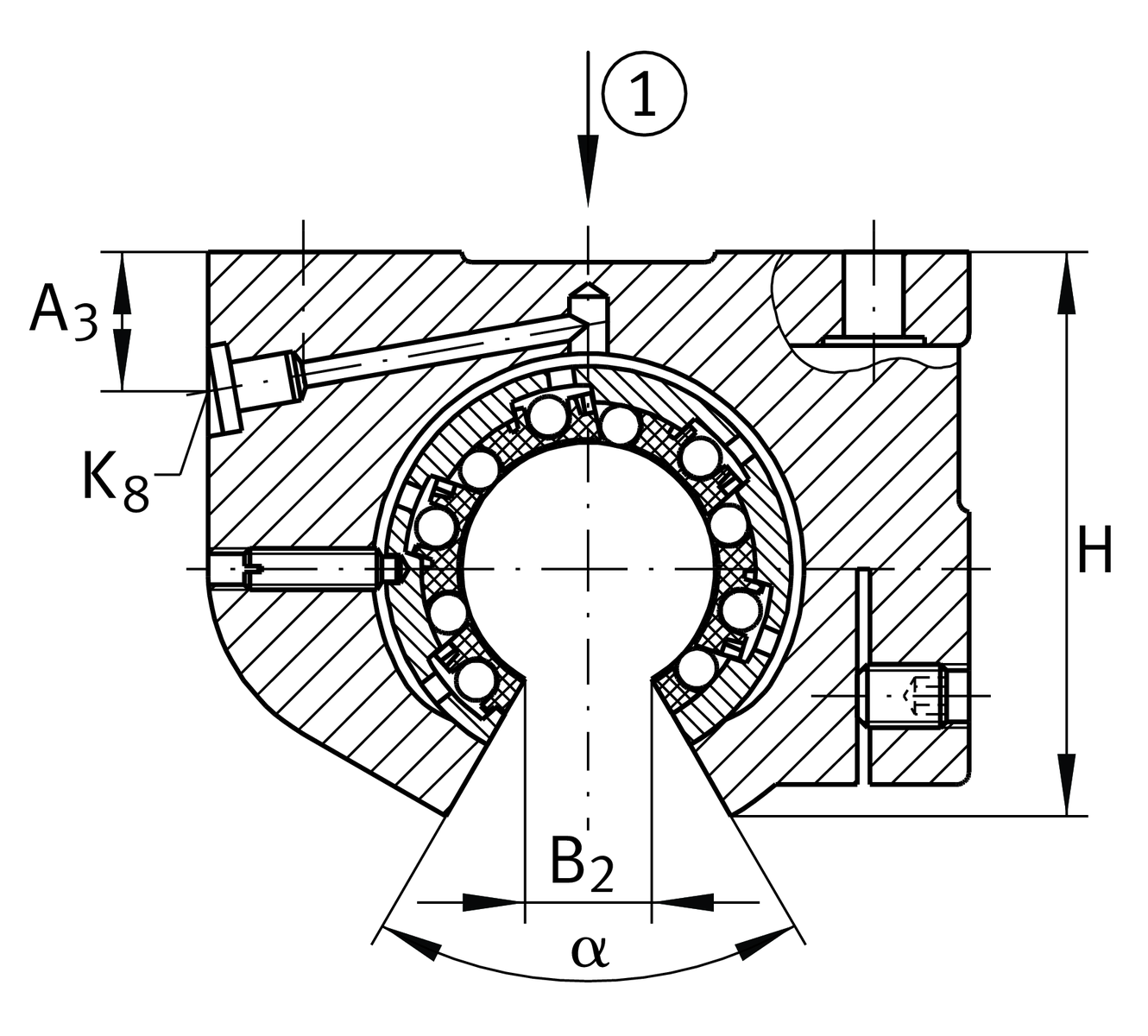

| K 8 | Niplu de ungere | NIPA2 |
| W 1 | Lățime across flats | 4 mm |
| M W 1 max | Cuplu maxim de strângere | 5 Nm |
| α | Angle | 54 ° |
