KGBO30-PP-AS+INA
Date tehnice INA/Schaeffler

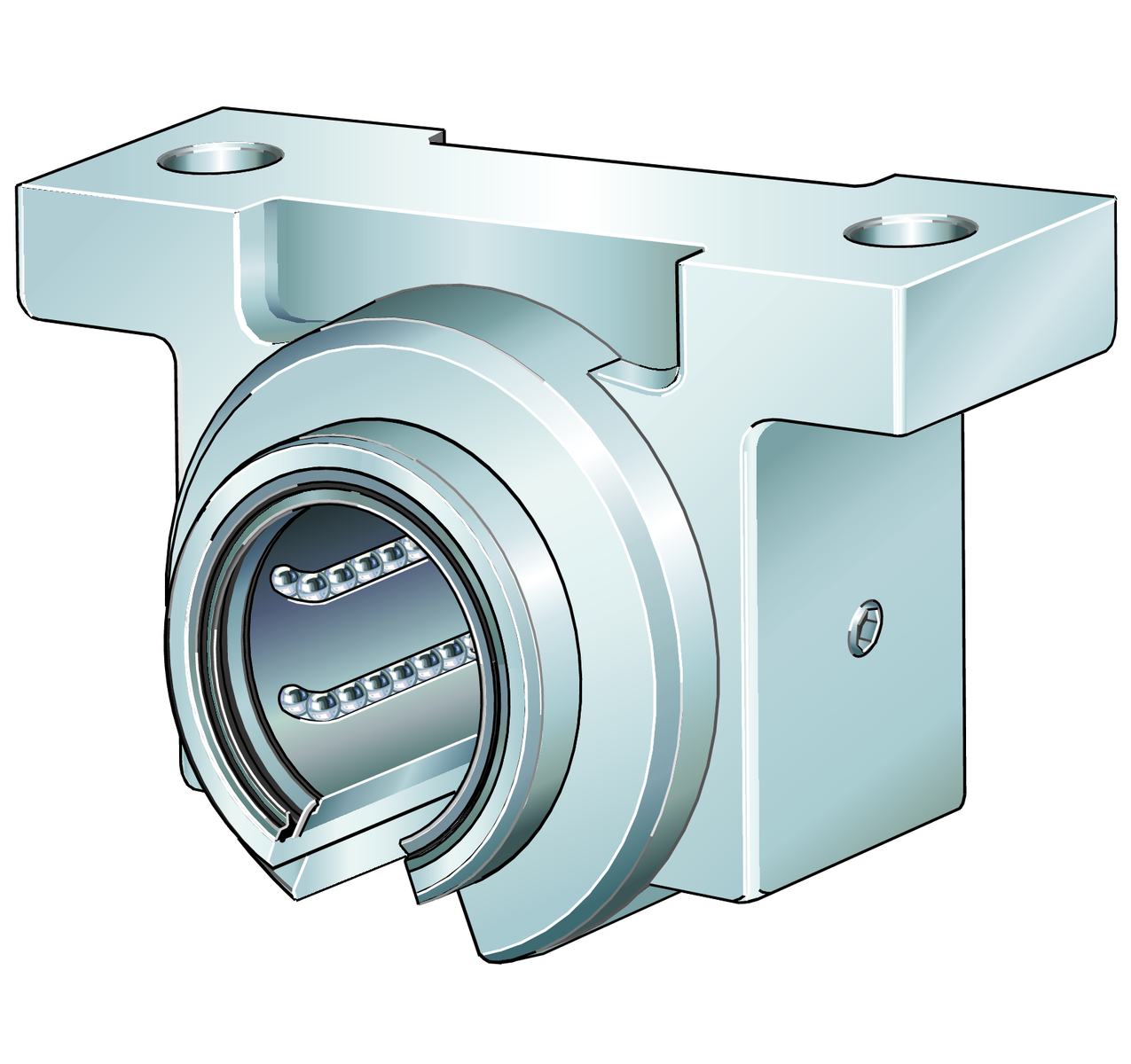

KGBO30-PP-AS - Linear Ball Bearing and Carcasă Unit
Linear ball bearing and housing unit; execuție deschisă, etanșat, uns, cu posibilitate de relubrifiere; execuție anticorozivă posibilă
B88 mmLățime
Prezentare produs
| Cod produs | KGBO30-PP-AS |
|---|---|
| Tip produs | Linear Ball Bearing and Carcasă Unit |
| Marcă | INA |
| Număr material Schaeffler | 0015663770000 |
| Tip de bază | KGBO30 |
| Masa | 0.78 kg |
| CAD disponibil | Da |
| Date de calcul disponibile | Nu |
Variantă tehnică și sufixe
| Seal | PP | |
| Relubrifiere facility | AS |
Technical data
| Ball rows | 5 | |
| ≈m | Masă | 0,78 kg |

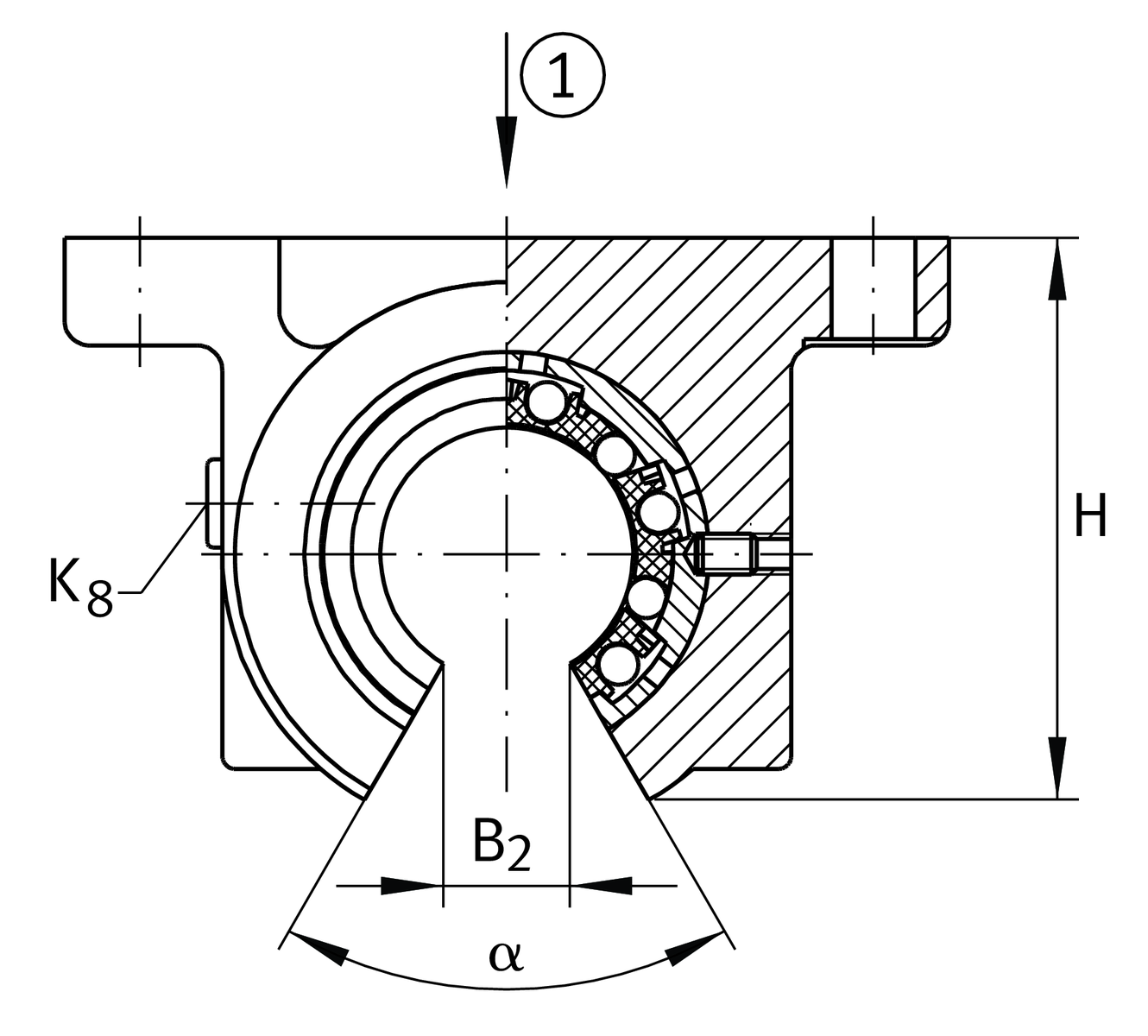

Dimensiuni principale și date de performanță
| H | Înălțime centru | 63,5 mm |
| L | Length | 68 mm |
| Tol L | Toleranță | h12 |
| B | Lățime | 88 mm |
| C | Capacitate dinamică | 3.700 N |
| C 0 | Capacitate statică C0 | 3.000 N |

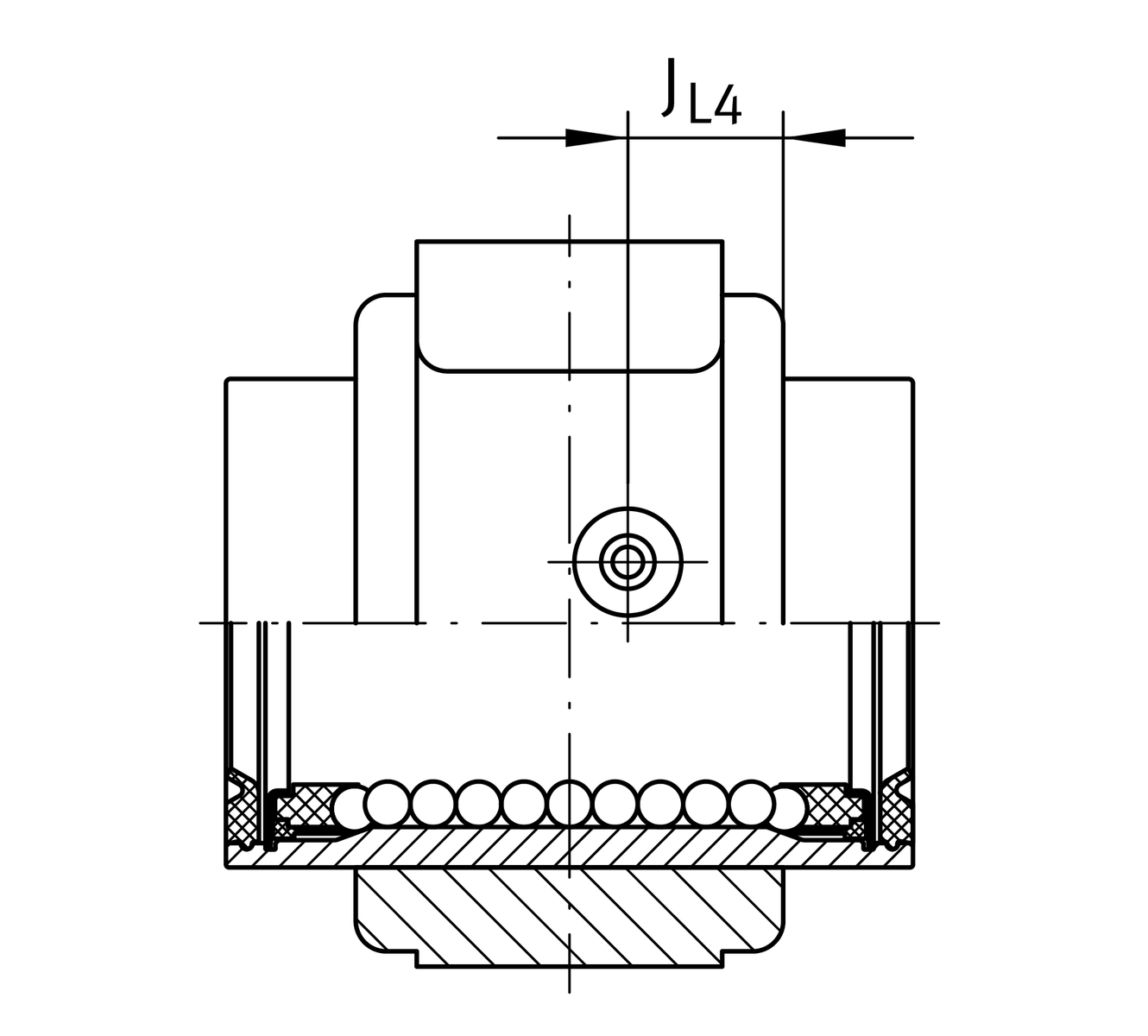

Dimensiuni de montaj
| J B | 76 mm | |
| Tol J B | Toleranță superioară | 0,2 mm |
| Tol J B | Toleranță inferioară | 0,2 mm |
| B 1 | 63 mm | |
| A 5 | 44 mm | |
| Tol A 5 | Toleranță superioară | 0,02 mm |
| Tol A 5 | Toleranță inferioară | 0,02 mm |
| B 2 | 13,6 mm | |
| L 4 | Distanță | 32 mm |
| L 5 | Distanță | 48 mm |
| J L 4 | Distanță | 19 mm |
| H 2 | Înălțime arbore | 35 mm |
| Tol H 2 | Toleranță superioară | 0,015 mm |
| Tol H 2 | Toleranță inferioară | 0,015 mm |
| A 3 | 25 mm | |
| H 6 | 10 mm | |
| N ! | 6,6 mm | |
| N 3 | 11 mm | |
| K 5 | M6 | |
| K 8 | Niplu de ungere | NIPA2 |
| α | Angle | 54 ° |
