KGBAO16-PP-AS+INA
Date tehnice INA/Schaeffler

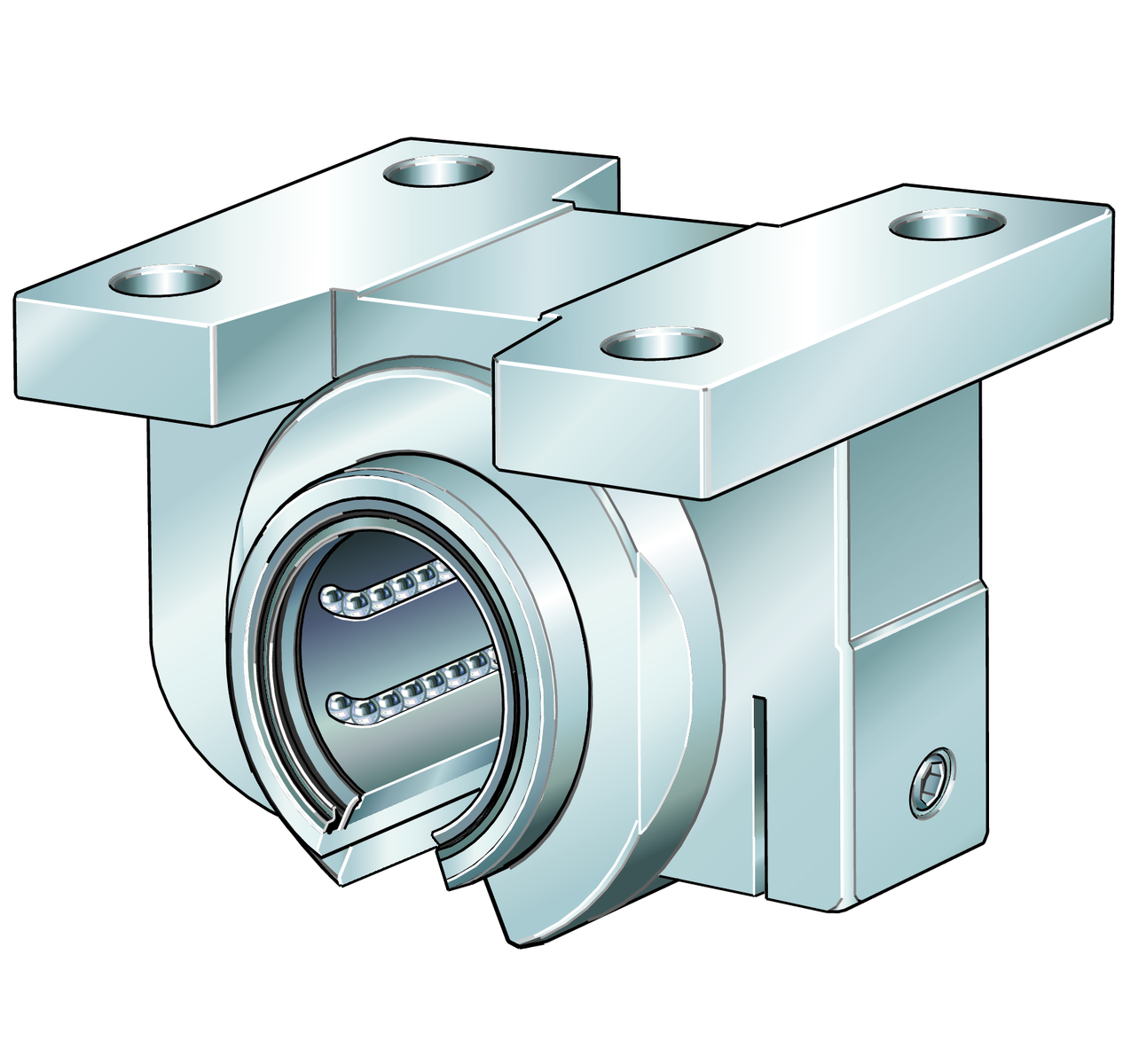

KGBAO16-PP-AS - Linear Ball Bearing and Carcasă Unit
Linear ball bearing and housing unit; execuție deschisă, etanșat, uns, cu posibilitate de relubrifiere; execuție anticorozivă posibilă
B50 mmLățime
Prezentare produs
| Cod produs | KGBAO16-PP-AS |
|---|---|
| Tip produs | Linear Ball Bearing and Carcasă Unit |
| Marcă | INA |
| Număr material Schaeffler | 0017438210000 |
| Tip de bază | KGBAO16 |
| Masa | 0.1 kg |
| CAD disponibil | Da |
| Date de calcul disponibile | Nu |
Variantă tehnică și sufixe
| Size code | 16 | |
| Seal | PP | |
| Relubrifiere facility | AS |
Technical data
| Ball rows | 4 | |
| ≈m | Masă | 0,1 kg |

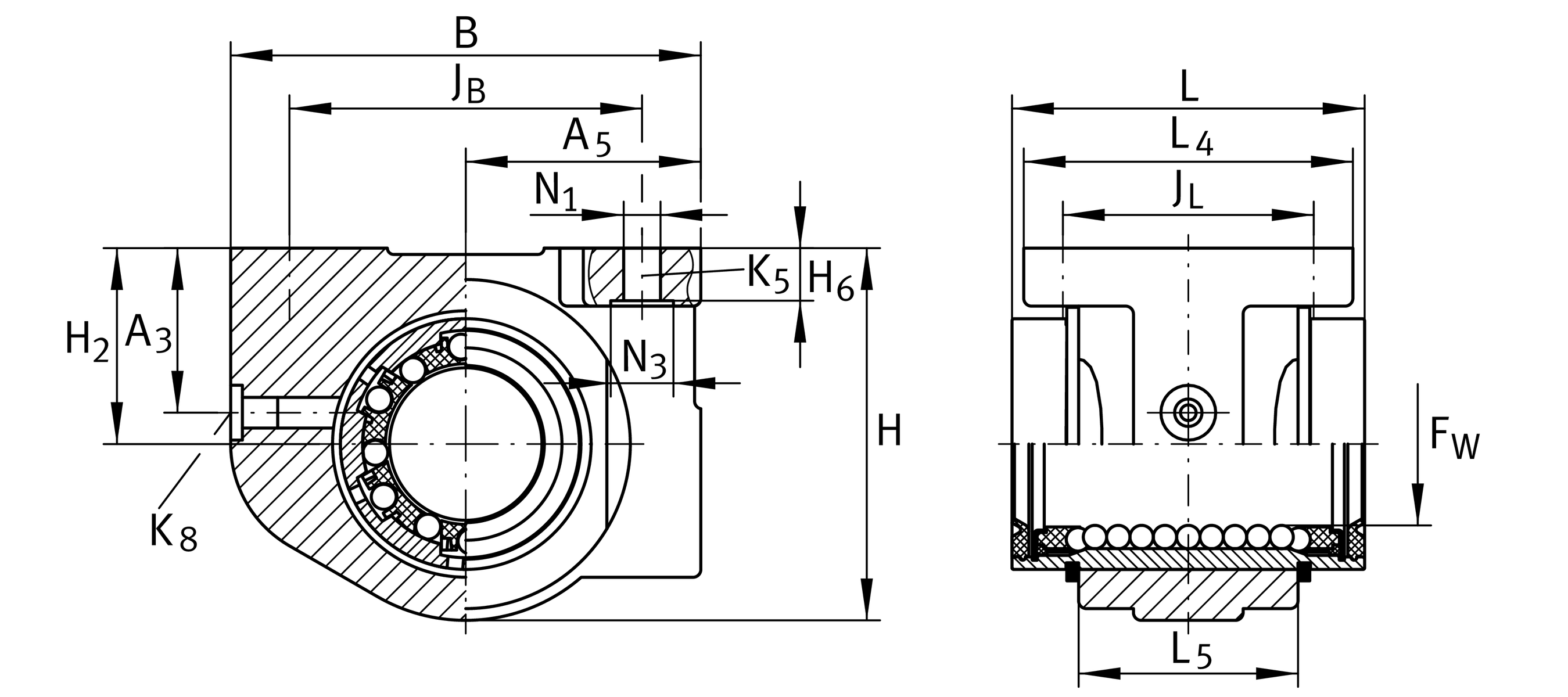

Dimensiuni principale și date de performanță
| F W | Diameter of ball complement | 16 mm |
| H | Înălțime | 37 mm |
| L | Length | 36 mm |
| Tol L | Toleranță | h12 |
| B | Lățime | 50 mm |
| C | Capacitate dinamică C | 800 N |
| C 0 | Capacitate statică C0 | 620 N |
Dimensiuni de montaj
| J B | 40 mm | |
| Tol J B | Toleranță superioară | 0,15 mm |
| Tol J B | Toleranță inferioară | 0,15 mm |
| A 5 | 25 mm | |
| Tol A 5 | Toleranță superioară | 0,01 mm |
| Tol A 5 | Toleranță inferioară | 0,01 mm |

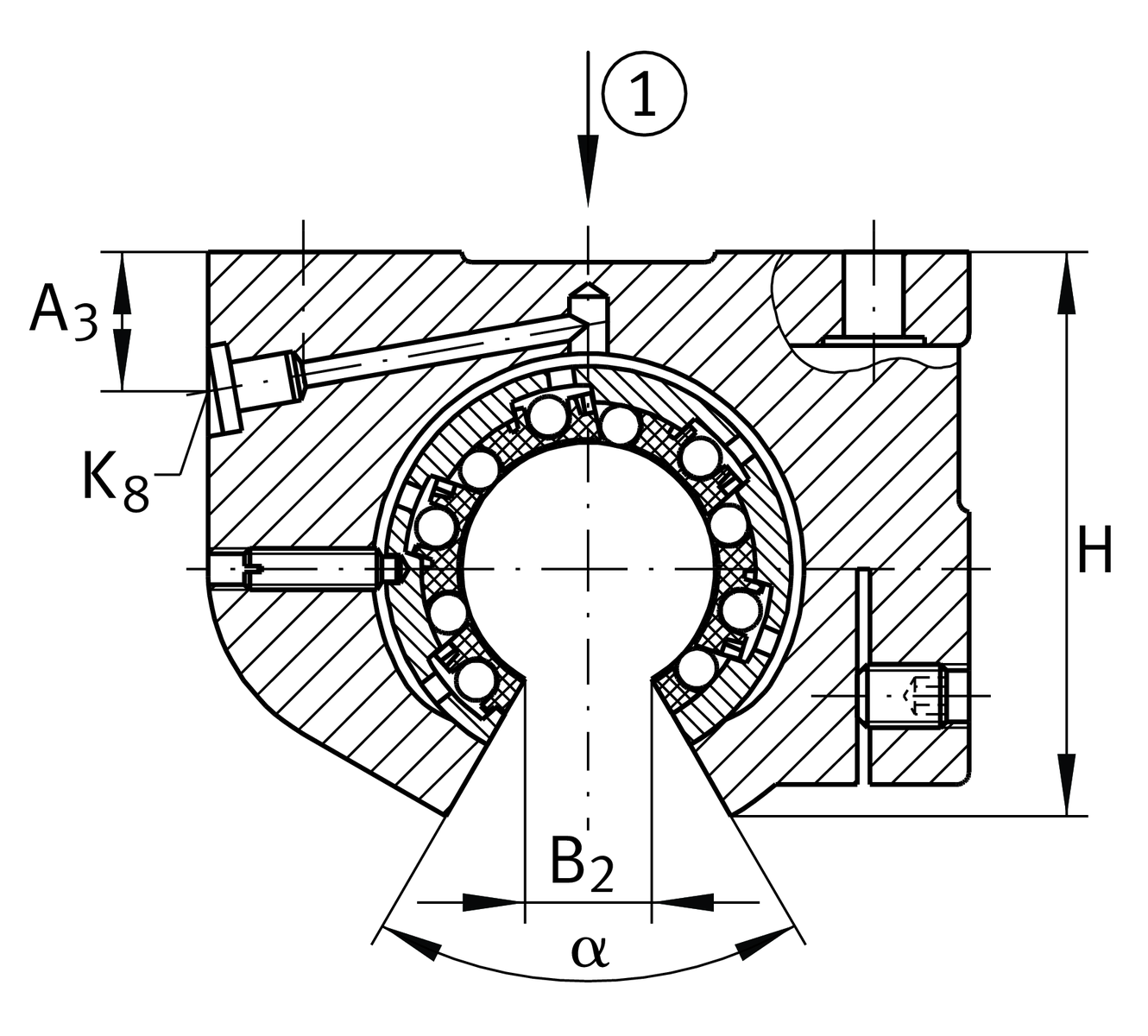

| B 2 | 10,1 mm | |
| L 4 | 35 mm | |
| L 5 | 22 mm | |
| J L | 26 mm | |
| Tol J L | Toleranță superioară | 0,15 mm |
| Tol J L | Toleranță inferioară | 0,15 mm |

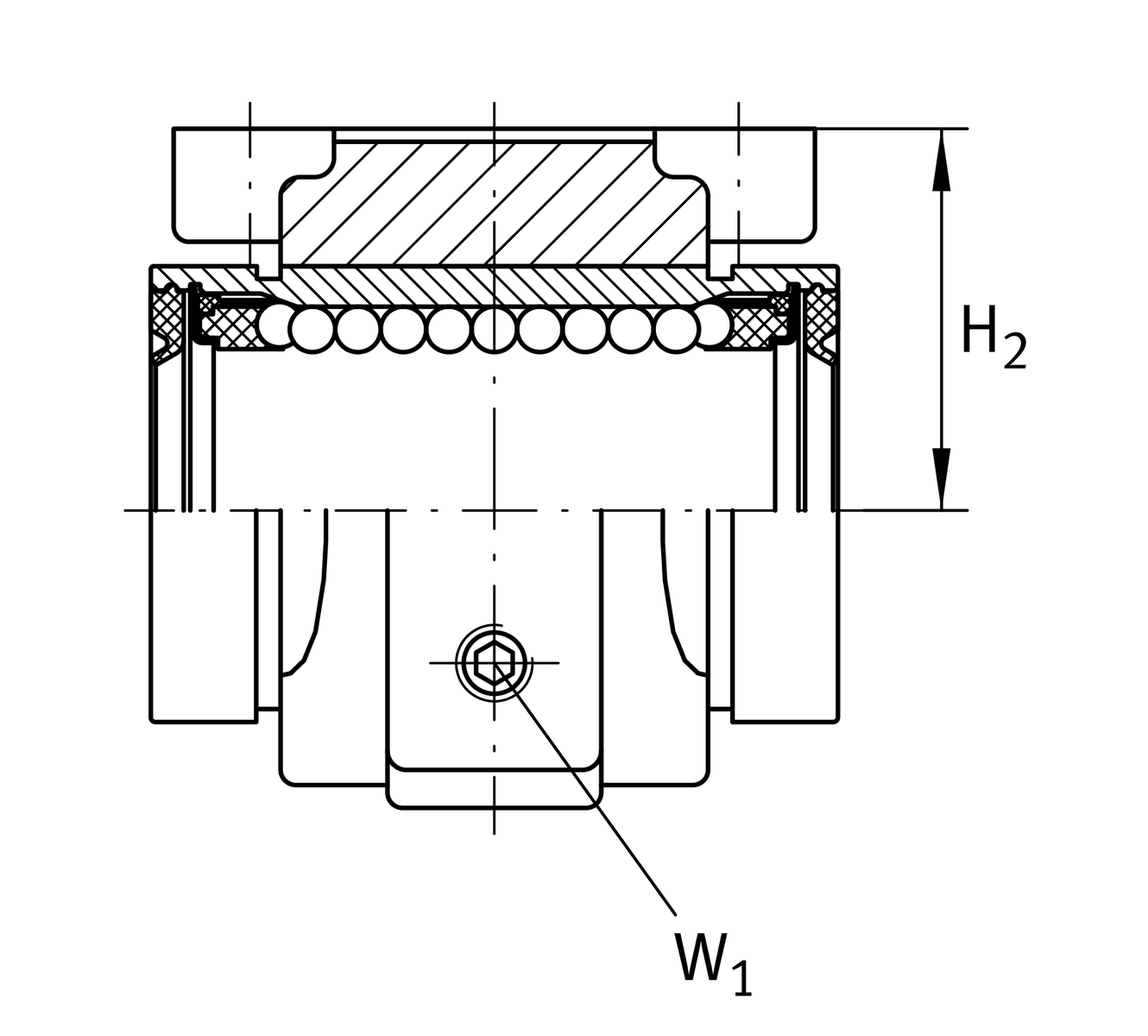

| H 2 | Înălțime arbore | 22 mm |
| Tol H 2 | Toleranță superioară | 0,01 mm |
| Tol H 2 | Toleranță inferioară | 0,01 mm |
| A 3 | 10 mm | |
| H 6 | 5,4 mm | |
| Tol H 6 | Toleranță | 0,5 mm |
| N 1 | 4,7 mm | |
| N 3 | 8 mm | |
| K 5 | M4 | |
| K 8 | Niplu de ungere | NIPA1 |
| W 1 | Lățime across flats | 2,5 mm |
| M W 1 max | Cuplu maxim de strângere | 1,5 Nm |
| α | Angle | 78 ° |
