KGBA20-PP-AS+INA
Date tehnice INA/Schaeffler

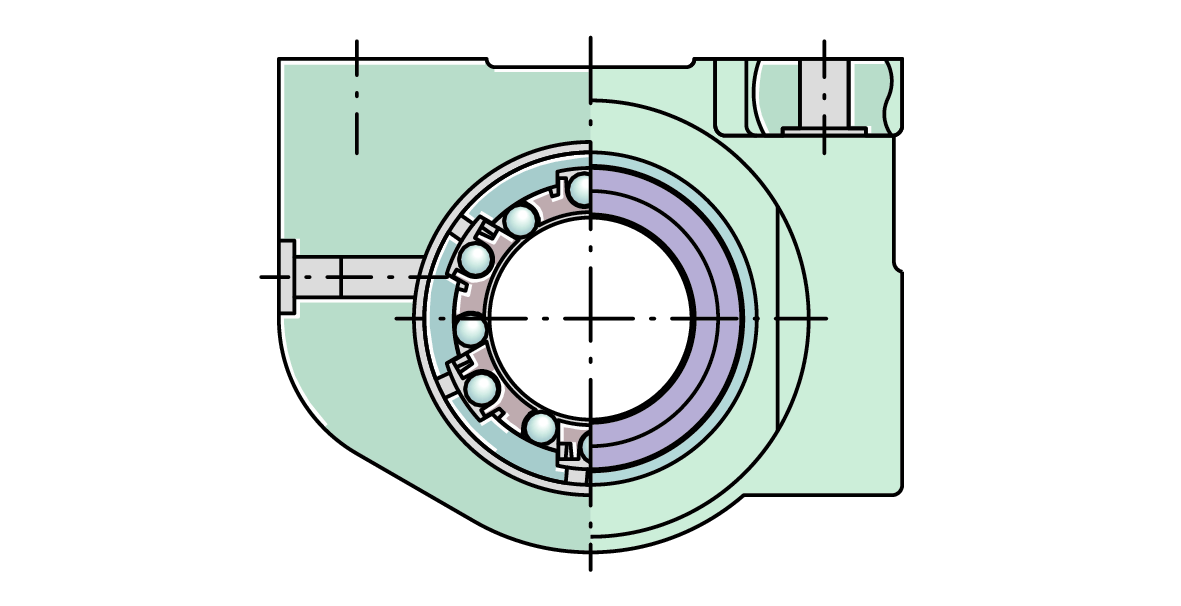

KGBA20-PP-AS - Linear Ball Bearing and Carcasă Unit
Linear ball bearing and housing unit; etanșat, uns, cu posibilitate de relubrifiere; execuție anticorozivă posibilă
B60 mmLățime
Prezentare produs
| Cod produs | KGBA20-PP-AS |
|---|---|
| Tip produs | Linear Ball Bearing and Carcasă Unit |
| Marcă | INA |
| Număr material Schaeffler | 0017497300000 |
| Tip de bază | KGBA20 |
| Masa | 0.2 kg |
| CAD disponibil | Da |
| Date de calcul disponibile | Nu |
Variantă tehnică și sufixe
| Size code | 20 | |
| Seal | PP | |
| Relubrifiere facility | AS |
Technical data
| Ball rows | 6 | |
| ≈m | Masă | 0,2 kg |

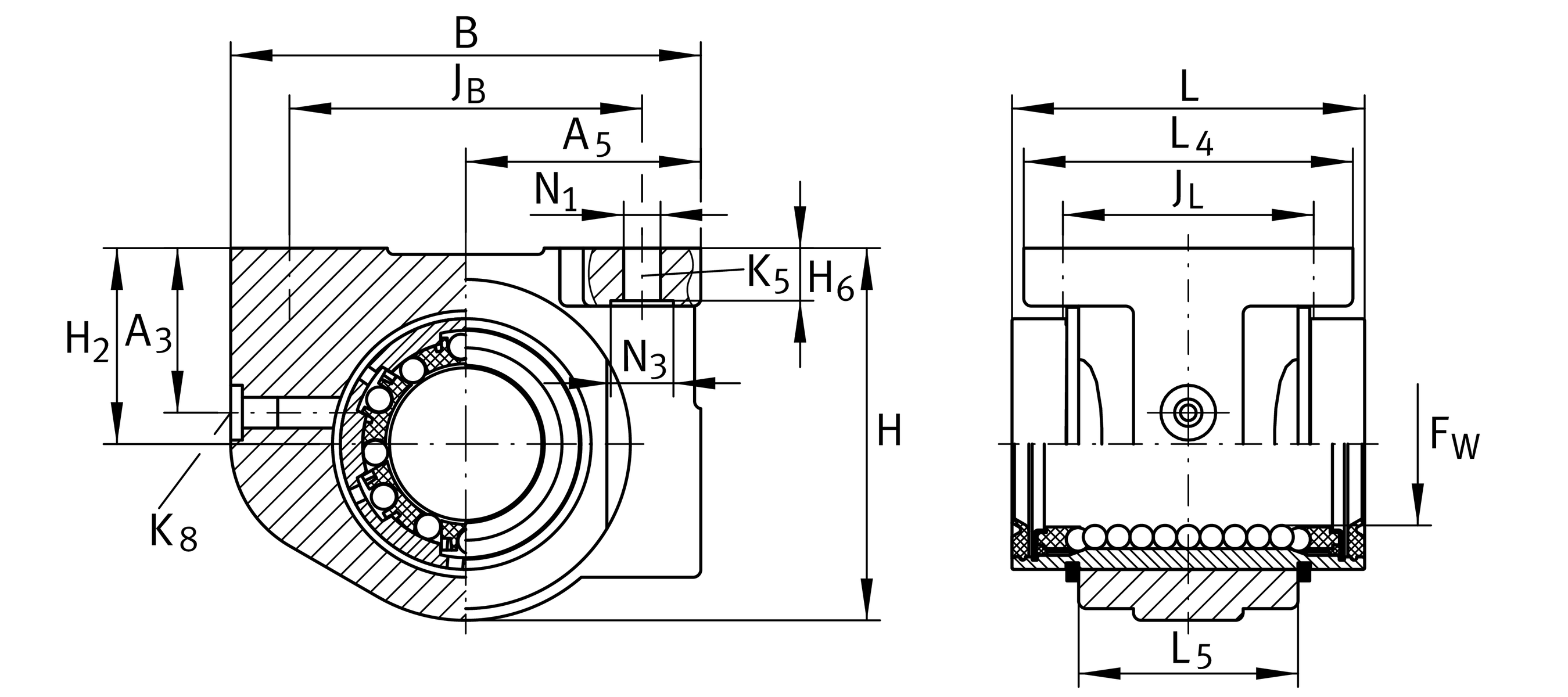

Dimensiuni principale și date de performanță
| F W | Diameter of ball complement | 20 mm |
| Tol F W | Toleranță superioară | 0,009 mm |
| Tol F W | Toleranță inferioară | 0,001 mm |
| H | Înălțime | 47,5 mm |
| L | Length | 45 mm |
| Tol L | Toleranță | h12 |
| B | Lățime | 60 mm |
| C | Capacitate dinamică C | 1.570 N |
| C 0 | Capacitate statică C0 | 1.230 N |
Dimensiuni de montaj
| J B | 45 mm | |
| Tol J B | Toleranță superioară | 0,15 mm |
| Tol J B | Toleranță inferioară | 0,15 mm |
| A 5 | 30 mm | |
| Tol A 5 | Toleranță superioară | 0,01 mm |
| Tol A 5 | Toleranță inferioară | 0,01 mm |
| L 4 | 42 mm | |
| L 5 | 28 mm | |
| J L | 32 mm | |
| Tol J L | Toleranță superioară | 0,15 mm |
| Tol J L | Toleranță inferioară | 0,15 mm |
| H 2 | Center Înălțime | 25 mm |
| Tol H 2 | Toleranță superioară | 0,01 mm |
| Tol H 2 | Toleranță inferioară | 0,01 mm |
| A 3 | 21 mm | |
| H 6 | 6,7 mm | |
| Tol H 6 | Toleranță | 0,5 mm |
| N 1 | 4,7 mm | |
| N 3 | 8 mm | |
| K 5 | M4 | |
| K 8 | Niplu de ungere | NIPA1 |
Documente
- Fișă tehnică produs KGBA20-PP-ASPDF produs
- Linear bearingsCatalog
