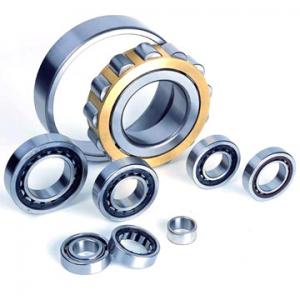

Fotografia produsului are caracter informativ
1726307-2RS+SKF
Date tehnice produs

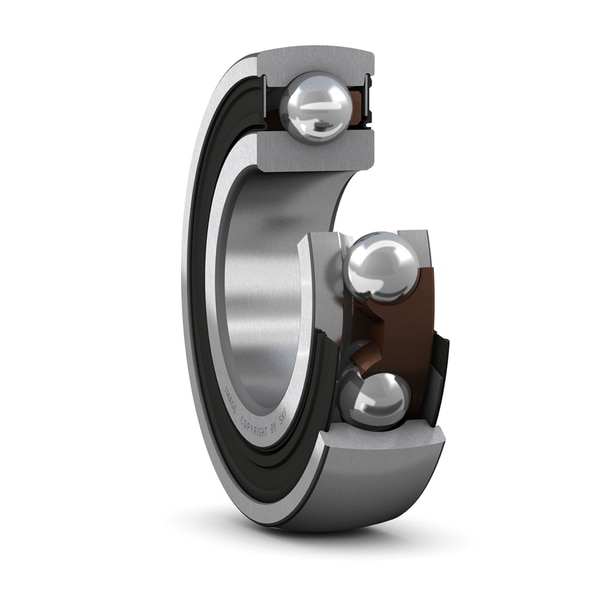

1726307-2RS1 - Insert bearing, with standard IR, sealed 2RS1
Insert bearing, with standard IR, sealed 2RS1 Insert bearings are based on sealed deep groove ball bearings. These insert bearings are suitable for applications where smooth running is a key operational parameter. It can accommodate heavier axial loads than any other insert bearing. The bearings are sealed on both sides, made of sheet steel reinforced NBR, and are fitted in a recess on the outer ring and ride against the inner ring shoulder to act as contact seals.
Shaft diameter35 mmShaft diameter
Bore diameter35 mmBore diameter
Outside diameter80 mmOutside diameter
Width, total21 mmWidth, total
Width, inner ring21 mmWidth, inner ring
Width, outer ring21 mmWidth, outer ring
Prezentare produs
| Cod produs | 1726307-2RS1 |
|---|---|
| Tip produs | Insert bearing, with standard IR, sealed 2RS1 |
| Marca | SKF |
Dimensions
| Shaft diameter | Shaft diameter | 35 mm |
| Bore diameter | Bore diameter | 35 mm |
| Outside diameter | Outside diameter | 80 mm |
| Width, total | Width, total | 21 mm |
| Width, inner ring | Width, inner ring | 21 mm |
| Width, outer ring | Width, outer ring | 21 mm |
Performance
| Basic dynamic load rating | Basic dynamic load rating | 33.2 kN |
| Basic static load rating | Basic static load rating | 19 kN |
| Limiting speed | Limiting speed | 6000 r/min |
Properties
| Retaining feature, inner ring | Retaining feature, inner ring | Interference fit |
| Bore type | Bore type | Cylindrical |
| Rolling elements | Rolling elements | Balls |
| Outer ring type | Outer ring type | Spherical |
| Inner ring extension | Inner ring extension | None (standard ring) |
| Cage | Cage | Non-metallic |
| Rubber seating ring | Rubber seating ring | Without |
| Material, bearing | Material, bearing | Bearing steel |
| Coating | Coating | Without |
| Sealing | Sealing | Seal on both sides |
| Sealing type | Sealing type | Contact, RS1 |
| Lubricant | Lubricant | Grease |
| Relubrication feature | Relubrication feature | Without |
Logistics
| Product net weight | Product net weight | 0.43 kg |
| eClass code | eClass code | 23-05-08-02 |
| UNSPSC code | UNSPSC code | 31171536 |
Dimensions
| d | Bore diameter | 35 mm mm |
| D | Outside diameter | 80 mm mm |
| B | Width of inner ring | 21 mm mm |
| d1 | Outside diameter of inner ring | ≈ 49.56 mm mm |
| r1,2 | Chamfer dimension of inner ring | min. 1.5 mm mm |
Calculation data
| C | Basic dynamic load rating | 33.2 kN kN |
| C0 | Basic static load rating | 19 kN kN |
| Pu | Fatigue load limit | 0.815 kN kN |
| Limiting speed | Limiting speed | 6000 r/min r/min |
| f0 | Calculation factor | 13 |
