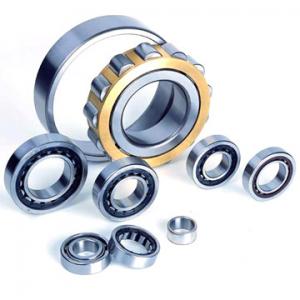

Fotografia produsului are caracter informativ
22226-E/C4+SKF
Date tehnice produs

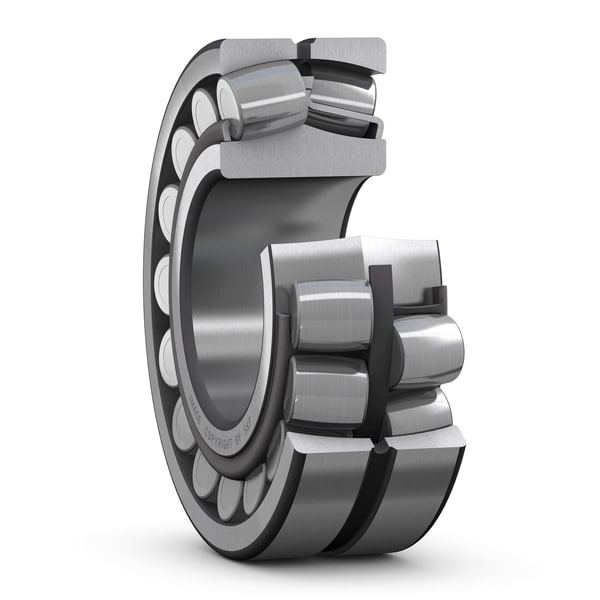

22226 E/C4 - Spherical roller bearing with relubrication features
Spherical roller bearing with relubrication features Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts. Also available on request with special sized bore and/or outside diameters, suitable for reworked shafts and housings.
Bore diameter130 mmBore diameter
Outside diameter230 mmOutside diameter
Width64 mmWidth
Basic dynamic load rating758 kNBasic dynamic load rating
Basic static load rating930 kNBasic static load rating
Reference speed2600 r/minReference speed
Prezentare produs
| Cod produs | 22226 E/C4 |
|---|---|
| Tip produs | Spherical roller bearing with relubrication features |
| Marca | SKF |
Dimensions
| Bore diameter | Bore diameter | 130 mm |
| Outside diameter | Outside diameter | 230 mm |
| Width | Width | 64 mm |
Performance
| Basic dynamic load rating | Basic dynamic load rating | 758 kN |
| Basic static load rating | Basic static load rating | 930 kN |
| Reference speed | Reference speed | 2600 r/min |
| Limiting speed | Limiting speed | 3600 r/min |
| SKF performance class | SKF performance class | SKF Explorer |
Properties
| Number of rows | Number of rows | 2 |
| Locating feature, bearing outer ring | Locating feature, bearing outer ring | Without |
| Bore type | Bore type | Cylindrical |
| Cage | Cage | Sheet metal |
| Radial internal clearance | Radial internal clearance | C4 |
| Tolerance class for dimensions | Tolerance class for dimensions | Normal |
| Tolerance class for run-out | Tolerance class for run-out | P5 |
| Sealing | Sealing | Without |
| Lubricant | Lubricant | None |
| Relubrication feature | Relubrication feature | With |
| Candidate for remanufacturing | Candidate for remanufacturing | Yes |
| Indicative carbon footprint for new product | Indicative carbon footprint for new product | 41.6 kg CO2e |
| Indicative carbon footprint for remanufactured product | Indicative carbon footprint for remanufactured product | 13.8 kg CO2e |
Logistics
| Product net weight | Product net weight | 11.2 kg |
| eClass code | eClass code | 23-05-09-11 |
| UNSPSC code | UNSPSC code | 31171510 |
