LAGH400+SKF
Date tehnice produs

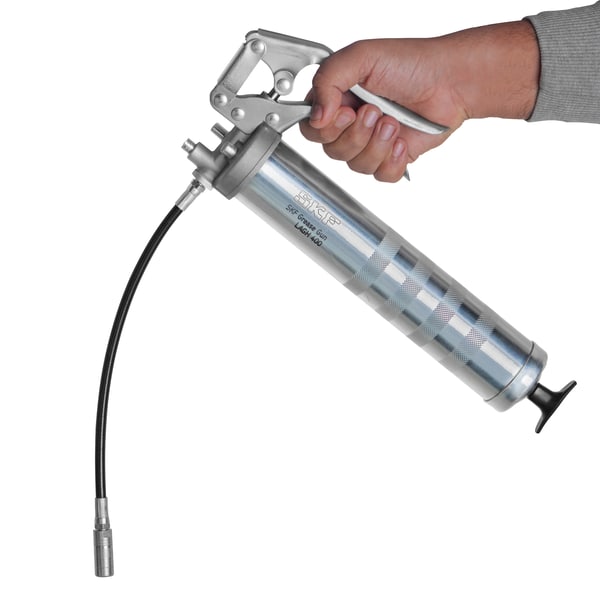

LAGH 400 - Manual operated grease gun, one handed
Manual operated grease gun, one handed The SKF unsoare Gun LAGH 400 is ideal for usage in agricultural, industrial and construction industries and for private use. The grease gun is equipped cu a filler nipple and air-release valve for easy re-filling by filler sau grease pumps. It can also adecvat pentru usage cu grease cartridges. The ergonomic design for one handed operation, the flexible high pressure hose and the possibility to mount the hose in both horizontal and vertical position makes this grease gun very versatile and easy to use.
Length (L)370 mmLength (L)
Maximum pressure300 barMaximum pressure
Maximum pressure (MPa)30 MPaMaximum pressure (MPa)
Volume per stroke0.46 mlVolume per stroke
Can be filled cu unsoare filler pumpDa, cu SKF LAGF 18 sau LAGF 50Can be filled cu unsoare filler pump
Extension pipeOptionalExtension pipe
Prezentare produs
| Cod produs | LAGH 400 |
|---|---|
| Tip produs | Manual operated grease gun, one handed |
| Marcă | SKF |
Dimensiuni detaliate
| Length (L) | Length (L) | 370 mm |
Performanță
| Maximum pressure | Maximum pressure | 300 bar |
| Maximum pressure (MPa) | Maximum pressure (MPa) | 30 MPa |
| Volume per stroke | Volume per stroke | 0.46 ml |
Proprietăți
| Can be filled cu unsoare filler pump | Can be filled cu unsoare filler pump | Da, cu SKF LAGF 18 sau LAGF 50 |
| Extension pipe | Extension pipe | Optional |
| Filling connection | Filling connection | DIN 1283 |
| unsoare supply | unsoare supply | Loose sau Cartridge |
| Hose | Hose | Da, 300mm |
| NLGI class of lubricant (max) | NLGI class of lubricant (max) | 2 |
| Operation | Operation | One handed |
| Pipe/Hose thread connection | Pipe/Hose thread connection | M10x1 |
| Recommended applications | Recommended applications | For manual filling of greasing points in industrial, construction and agricultural applications |
| Reservoir volume | Reservoir volume | 500 ml |
| Suitable for grease nipples | Suitable for grease nipples | Standard nipples as per DIN 71412 |
| Type | Type | Manual grease gun |
| Use of standard grease cartridges | Use of standard grease cartridges | Da, type DIN 1284 |
Logistică
| Greutate netă produs | Greutate netă produs | 1.28 kg |
| Cod eClass | Cod eClass | 23-06-91-06 |
| Cod UNSPSC | Cod UNSPSC | 15121902 |
