PAB16-PP-AS+INA
Date tehnice INA/Schaeffler

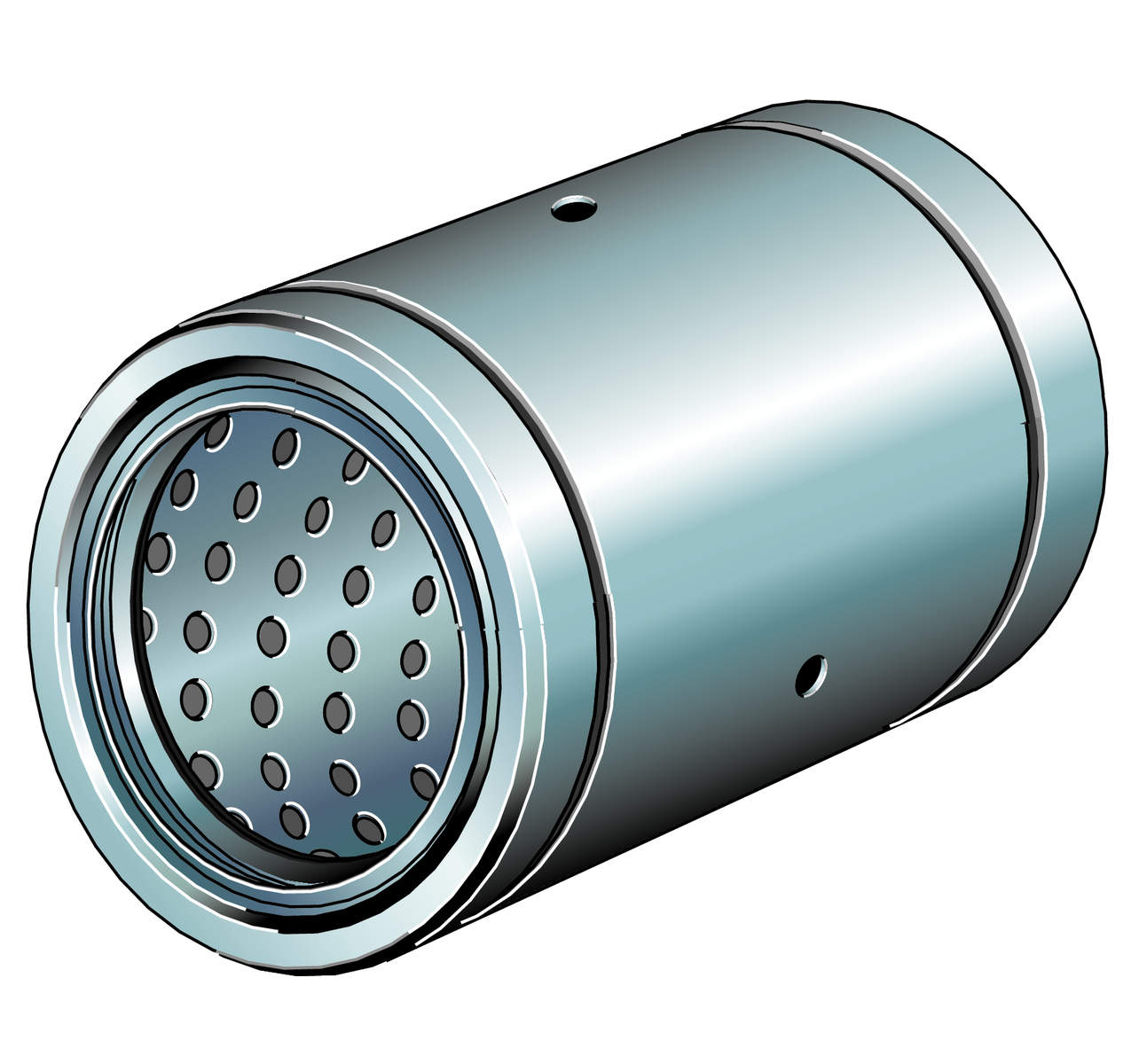

PAB16-PP-AS - Linear plain bearing
Linear plain bearing; etanșat on all sides, cu posibilitate de relubrifiere
D26 mmDiametru exterior
Prezentare produs
| Cod produs | PAB16-PP-AS |
|---|---|
| Tip produs | Linear plain bearing |
| Marcă | INA |
| Număr material Schaeffler | 0016583010000 |
| Tip de bază | PAB16 |
| Masă | 35 g |
| CAD disponibil | Da |
| Date de calcul disponibile | Nu |
Variantă tehnică și sufixe
| Size code | 16 | |
| Seal | PP | |
| Relubrifiere facility | AS |

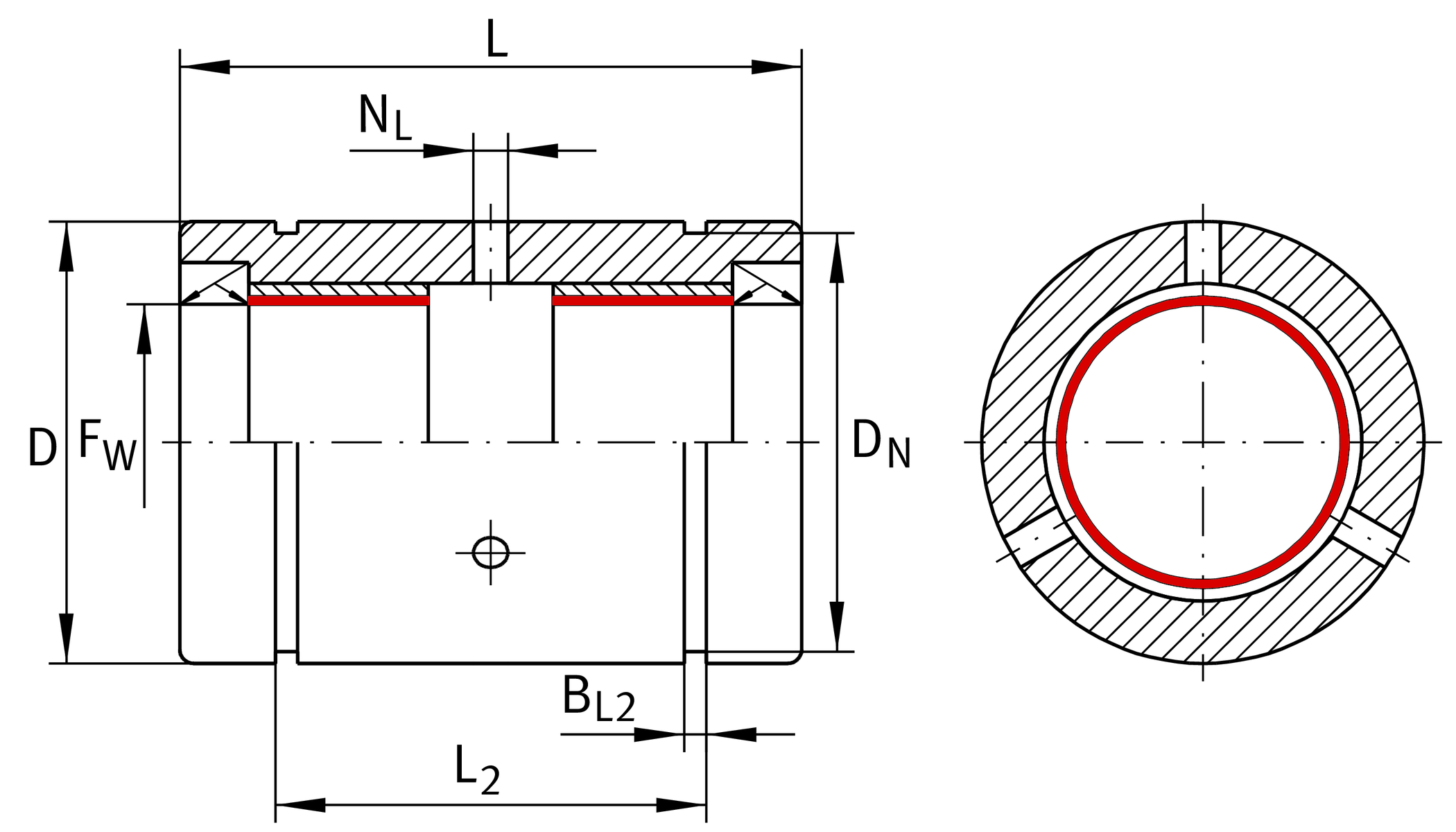

Dimensiuni principale și date de performanță
| F W | Diameter of ball complement | 16 mm |
| D | Diametru exterior | 26 mm |
| Tol D | Toleranță | h7 |
| L | Length | 36 mm |
| Tol L | Toleranță | h12 |
| C 0 | Capacitate statică C0 | 96.000 N |
| ≈m | Masă | 35 g |
Dimensiuni de montaj
| L 2 | Dimensiune de montaj | 24,6 mm |
| Tol L 2 | Toleranță | H13 |
| B L2 | 1,3 mm | |
| Tol B L2 | Toleranță | H13 |
| D N | 24,9 mm | |
| N L | 2,5 mm | |
| Tol N L | Toleranță | H13 |
Documente
- Fișă tehnică produs PAB16-PP-ASPDF produs
- Linear bearingsCatalog
